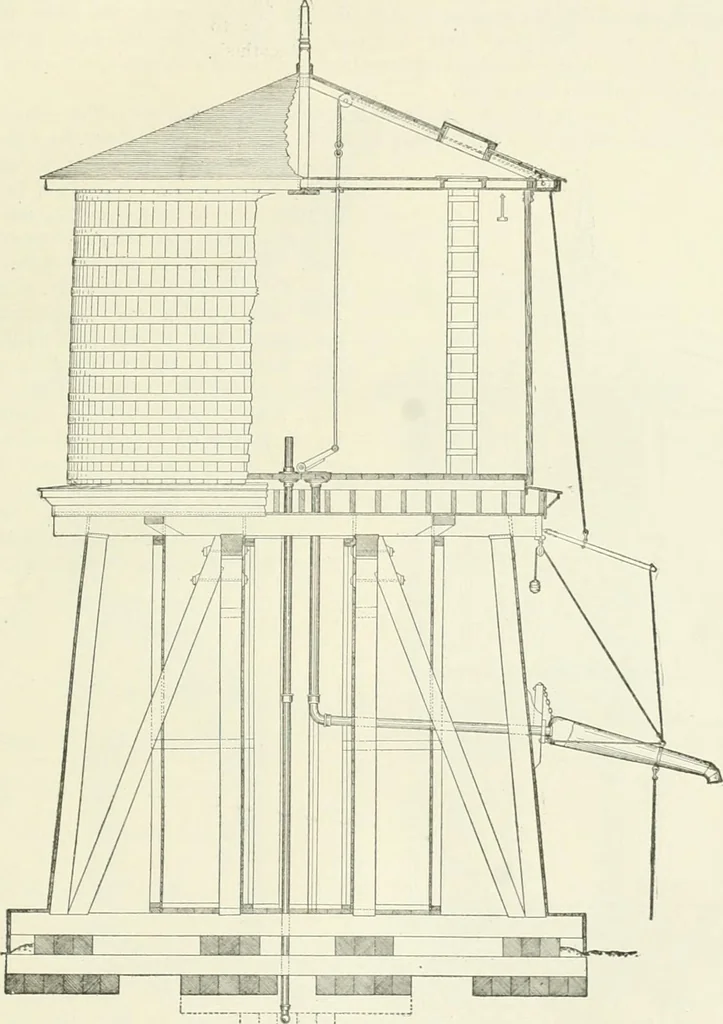

ost identical with the i6-ft. X i6-ft. tank previously described. The IV/t TEN ST A TIONS. 125 outside staves and the floor are made of 3i^jj-in. plank, the floor-joists are 2 in. X 8 in., and the floor-beams are 4 in. X 14 in. The caps of the bents are 12 in. X 15 in. The distinctive feature of… … Fic. 262.—Elevation and Ckoss-section. pi|ie-rod with the valve-stem of a Chapman valve in the suppjy-liipe below the ground under thetank. High Wiift-r-tank, Northerii Pacific Railroad.—The hij;h water-tank of the Northern Pacific Rail-road, sliown in Fig. 262, designed by Mr. C. V,. Taljjot, with…
