Buildings and structures of American railroads. A reference book for railroad managers, superintendents, master mechanics, engineers, architects, and students (1893)
Berg, Walter Gilman, 1858-1908 · New York Wiley · leaf 279

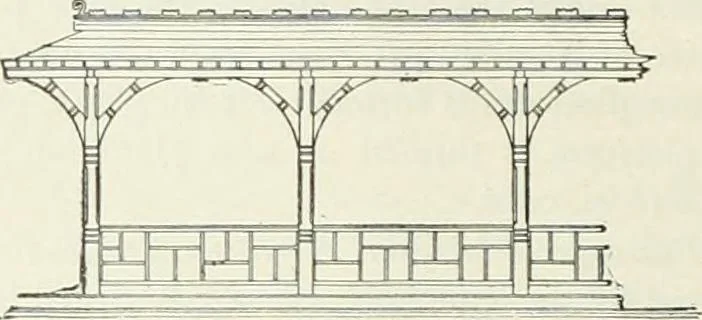

Fig. 403.- -End Elevation. … Fig. 404.—Front Elevation. lengthwise of the platform, each bent having two posts, spaced 8 ft. centres, as shown. The shed isroofed with tin. The finials, ridge-cresting, and board knee-braces, together with the ornamentalfinish of the posts, causes the structure to present a very striking and…
Building · Railroads
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
