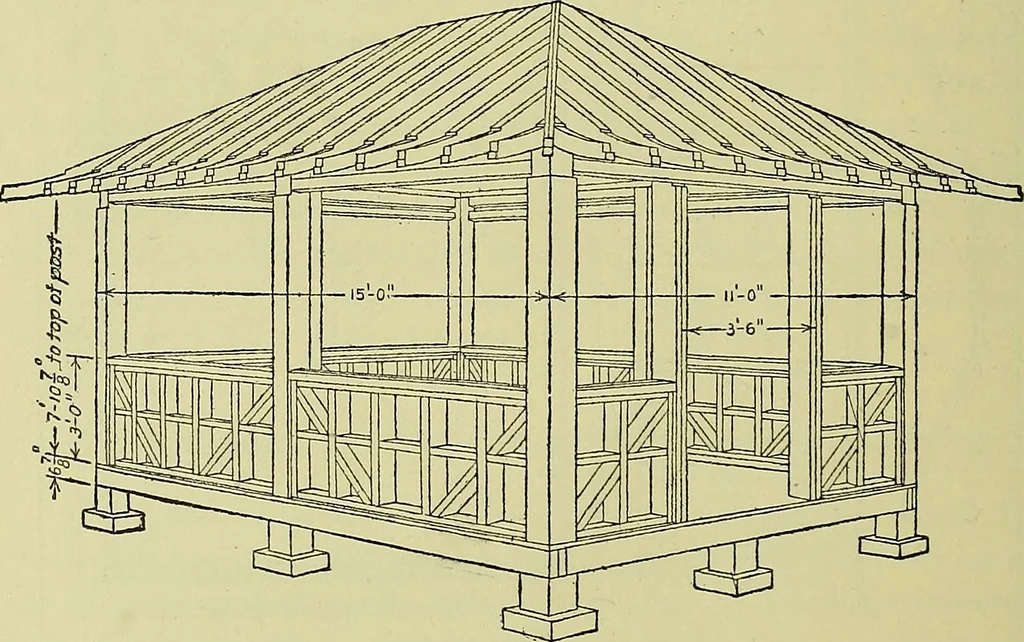

Pig. 338. Perspective of Park House … Fig. 339. Perspective of Framing Construction of Park House MEASUREMENTS 303 DATA FOR DRAWING PLATE 51 Given: The perspective sketches, Figs, 338 and 339; theplan, Fig. 340; and the cornice detail, Fig. 341, for a small parkhouse. Required: To draw the orthographic views showing theframing and…
