Buildings and structures of American railroads. A reference book for railroad managers, superintendents, master mechanics, engineers, architects, and students (1893)
Berg, Walter Gilman, 1858-1908 · New York Wiley · leaf 304

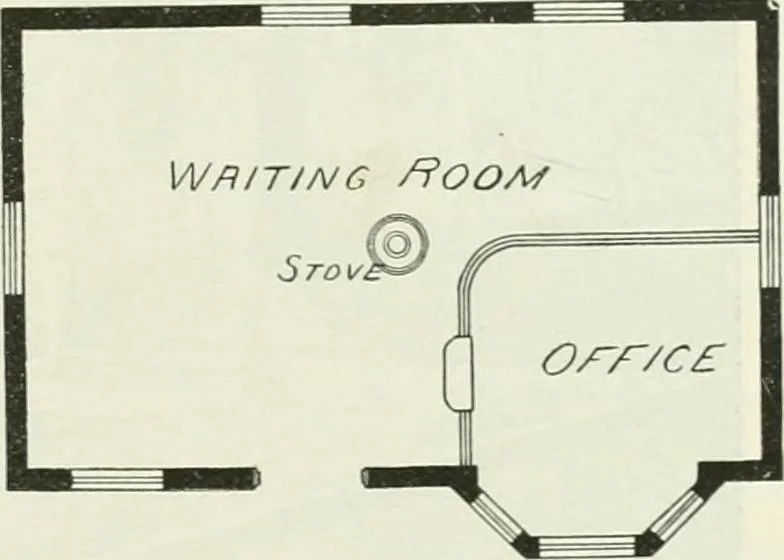

Fig. 480.—Front Elevation. Fig. 4S1.—End Elevation. … Fig. 4S2.—Ground-plan. matched diagonal sheathing and upright ornamentalboarding, and roofed with slate. The interior con-sists of one large room, in one corner of which a space,6 ft. X 8 ft., with a hexagonal bay-window extension, 2ft. X 6 ft., is partitioned off by a railing for an office.The…
Building · Railroads
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
