Building stone, lathing, plastering, and tiling, common brickwork, ornamental brickwork and terra cotta : lighting fixtures, use and design of lighting fixtures, architectural design (1909)
International Correspondence Schools · Scranton : International Textbook Co. · leaf 144

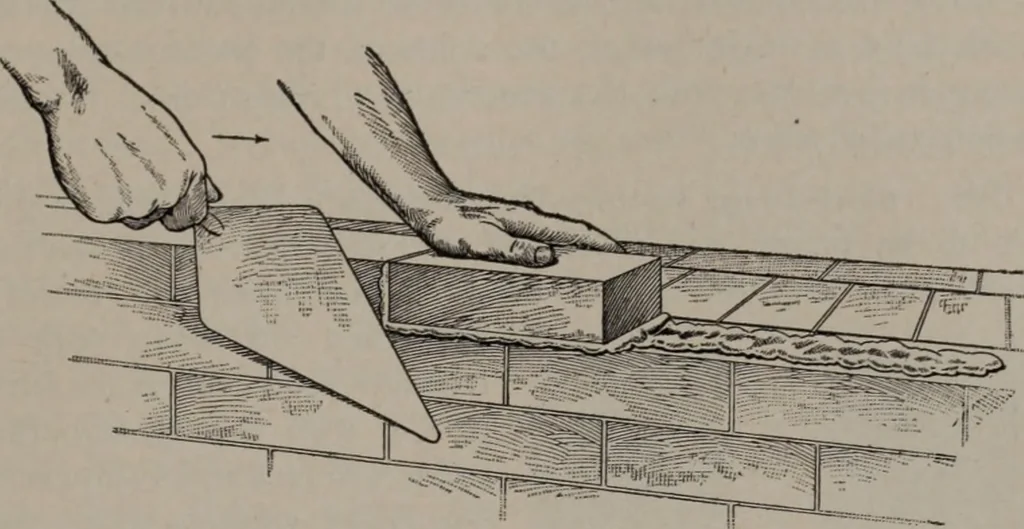

Fig. 2 ofl against the edge of the brick to fill the vertical joint between it and the next brick to be laid, as shown in Fig. 4. After the two outside courses have been laid, the middle courses are put in; all the bats, or broken brick, are used §39 COMMON BRICKWORK 15 here, as they will not be… … Fig. 3 by picking up a little mortar on the trowel and forcefullythrowing it down on the joint. The brick in the middle of awall are usually laid farther apart than those on the outside,thus allowing the vertical joints to be filled as described.
