Building stone, lathing, plastering, and tiling, common brickwork, ornamental brickwork and terra cotta : lighting fixtures, use and design of lighting fixtures, architectural design (1909)
International Correspondence Schools · Scranton : International Textbook Co. · leaf 157

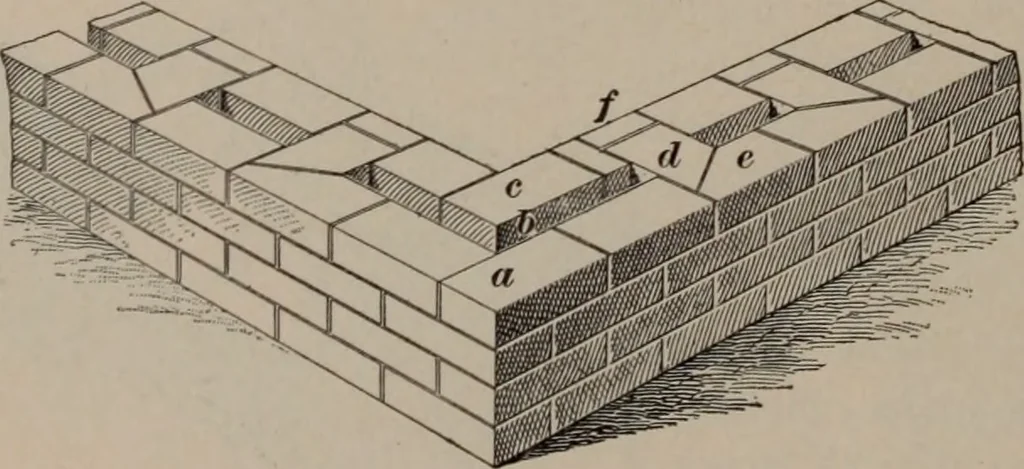

Fig. 16 the inner and outer walls. Of course, in practice, it is neces-sary to have some bonding between the two walls, but thestyle of bonding should be carefully considered. By permitting the passage of moisture through the wallwhere it is bonded, brick bonding neutralizes some of the … Fig. 17 benefit gained by making the walls hollow. To provide acontinuous air space when a wall is penetrated by open-ings is practically impossible, though it may be closelyapproximated. §39 COMMON BRICKWORK 29 47. Fig. 16 shows one form of hollow wall with an8-inch outer wall a, a 2-inch air…
Building · Building materials · Architectural design · Lighting, Architectural and decorative
