Blessing, George F. (George Frederick), 1875-1921, Darling, Lewis A. (Lewis Andrew) · New York, J. Wiley & sons; [etc., etc.] · leaf 183

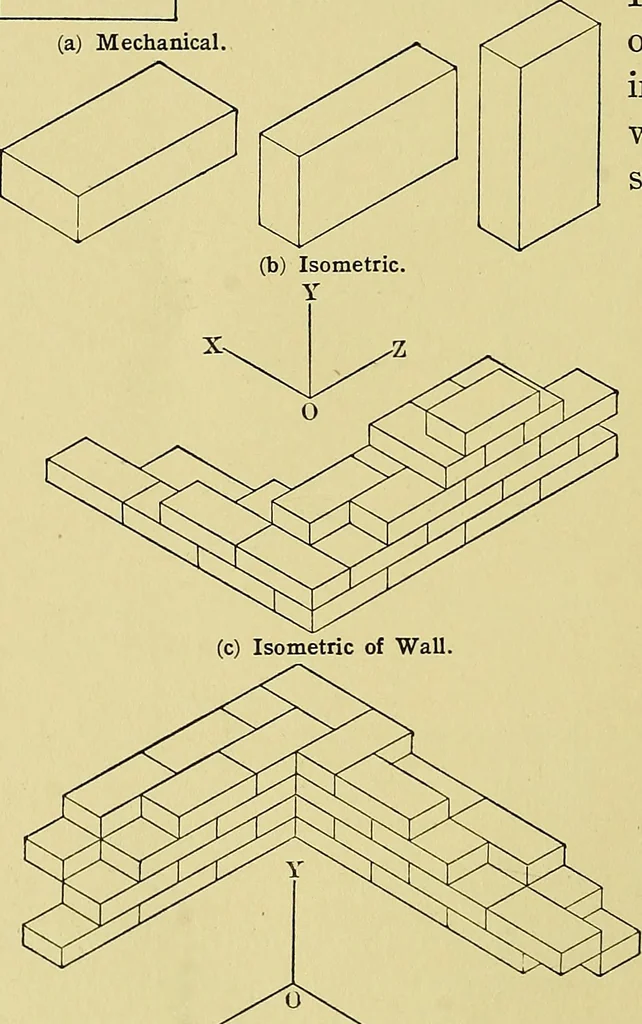

shows adifferent view of a wallsimilar to that of Fig.128 (c) but having thehorizontal lines in adownward directioninstead of upward asin previous work.Drawing the horizon-tal downward is calledreversing the axes, andthis method can beused to show the lowerface of an object, rep-resenting it as if… … ISOMETRIC DRAWING AND SKETCHING 163 125. Isometric of a Cylinder. Make a drawing of a cubethat will just enclose thecylinder, then draw theellipse within the rhom-bus that represents thetop of the cube See Fig.129. Likewise constructthe base of the cube, andconnect the top and thebase with tangent…
Mechanical drawing
