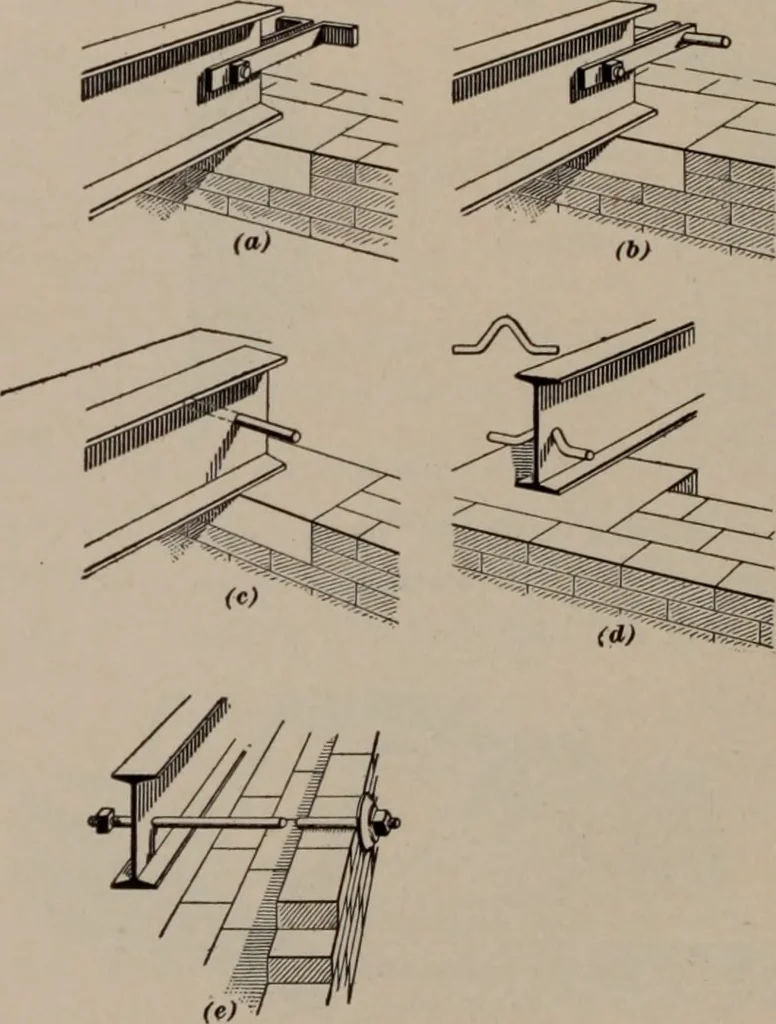

oist fall, will be materially increased. Fig. 26 shows the method of anchoring joists to wallswhere the joists and the walls run parallel. The anchor,let into the floor joists as shown at a, is provided with awasher b, and should be long enough to run over two orthree joists, in order to give… … Fig. 27 anchors are shown at (a), {b), [c), and {d), while (<?) repre-sents a tie-rod anchor running through the wall, to be usedwhen the beam is run parallel to the wall. §39 COMMON BRICKWORK 37 CORBELING FOR FLOOR JOISTS 57. Floor joists are sometimes supported by corbelsbuilt out from the…
