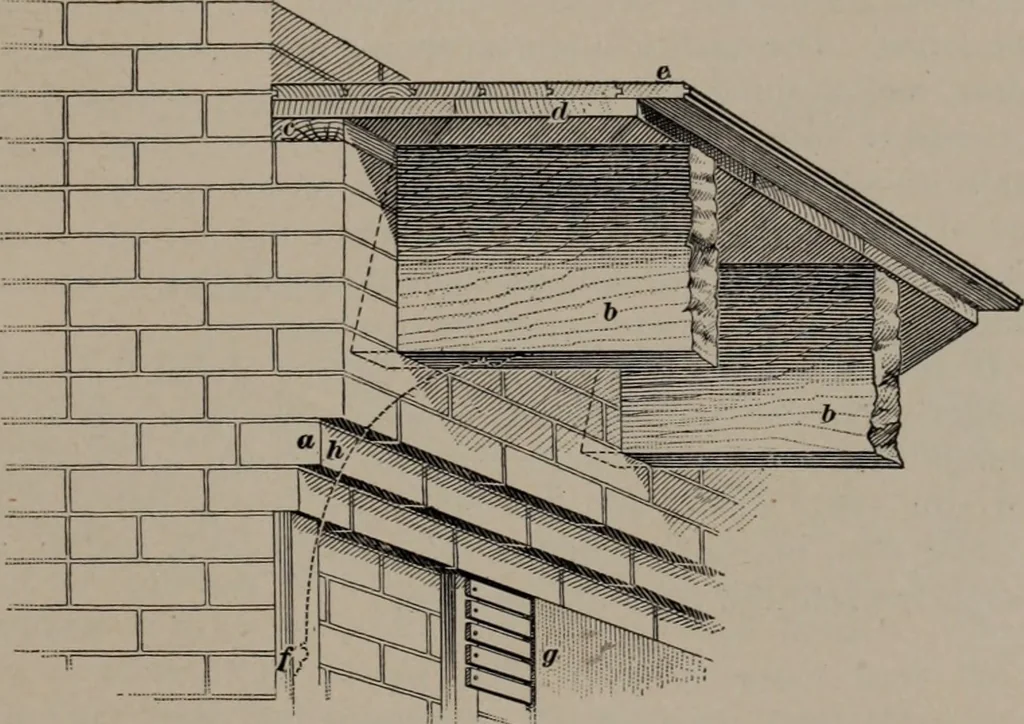

BRICKWORK 37 CORBELING FOR FLOOR JOISTS 57. Floor joists are sometimes supported by corbelsbuilt out from the walls. This method is required undercertain conditions in the building laws of Chicago, as itallows the wall to be run up solid. The corbel usually pro-jects 4 inches, and is composed of… … Fig. 28 d is the rough flooring, and e the tongued-and-grooved floor-ing; / is the \ X 2 furring on the wall, and g, the lath andplaster over the furring strips. The dotted line // shows theoutline of a plaster cornice that is usually put on undercontinuous corbels so as to give the room below a…
