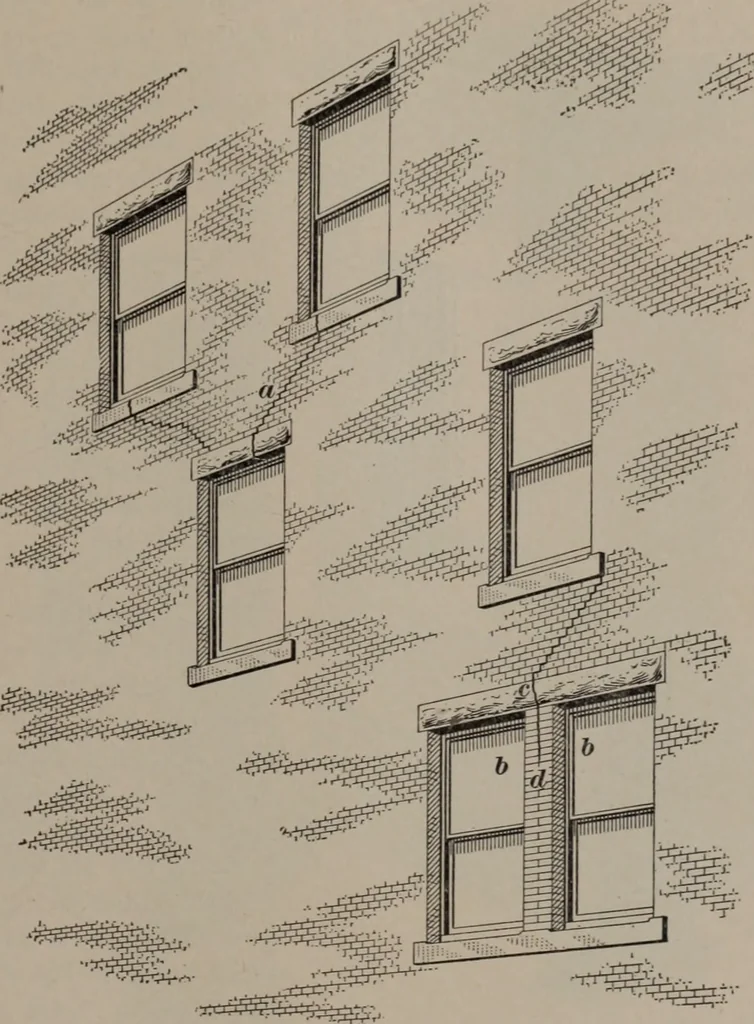

FrG 5 lit^ <3^^^^ ^^^^ • • ••j ^1 .3i! ! -• <^S ■ ■ ~ • ■ I >» .^.-1 I -i ^■•••fl .i^ ^•H 1 ^ Fig C §40 COiMMON BRICKWORK 21 openings in the different stories should be placed directlyover one another. Unless absolutely necessary, the placing of windows undera pier or directly over a… … Fig. avoided. The effect of such an arrangement is shown inFig. 7. At a is shown a window opening under a pier; thecombined effects of the load of brickwork and the settlementof the joints cause the sills of the upper windows and the 22 COMMON BRICKWORK §40 lintel of the lower window to crack, and…
