How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 27

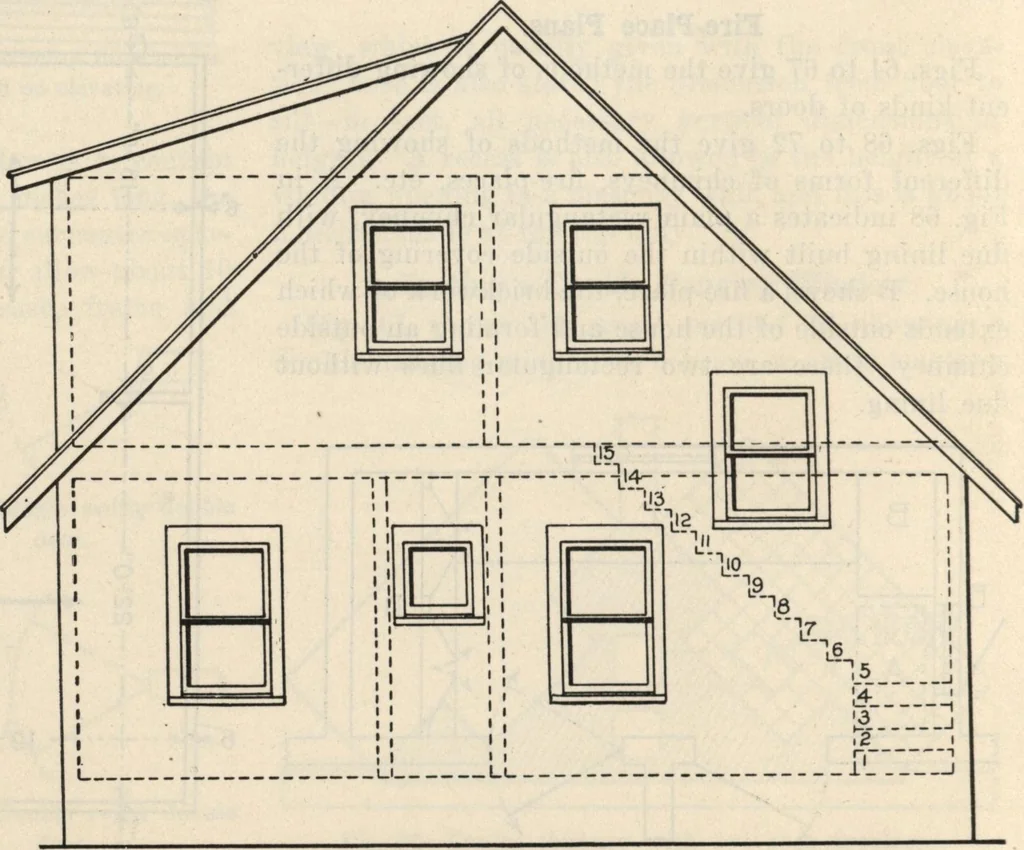

the shortest spans. Common Stairs. In previous illustrations stairs were represented,but it will be better to include here a larger illustra-tions. Fig. 76 shows ordinary common stairs withthe wall on one. side and a handrail on the other;the lower step extends out further than the otherstep, and… … Fig. 78—Showing sections of rooms, floors and stairs with dotted lines. FRAME AND MASONRY WALLS—STANDARD SYMBOLS 29 Platform Stairs. Fig. 11 shows a platform stairs, which will bereadily understood. It will be observed that eachtread is numbered at the outer edge; these numbersindicate the risers.…
