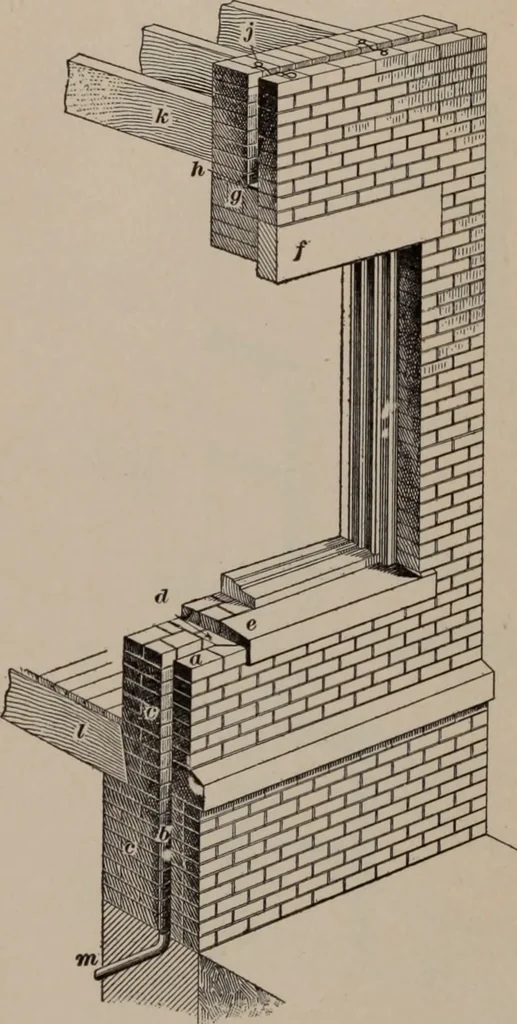

ings inHollow Walls.— Fig. 8 shows the con-struction of a hollowwall around a windowopening; a shows theoutside 4-inch wall;by the 2-inch air space;c, c, the 12-inch cellarand the 8-inch first-story inner walls; d isthe bonding brick ad-jacent to the windowopening; <?, the window sill; /, the… … Fig. 8 §40 COMMON BRICKWORK 23 bonders that bond the inner and outer walls together; k, thesecond-story floorbeams; /, the first-story beams; and m,a pipe to drain any moisture that might collect in thehollow wall. BRICK PIERS 16. Brick piers are built in the same manner as brickwalls. When they…
