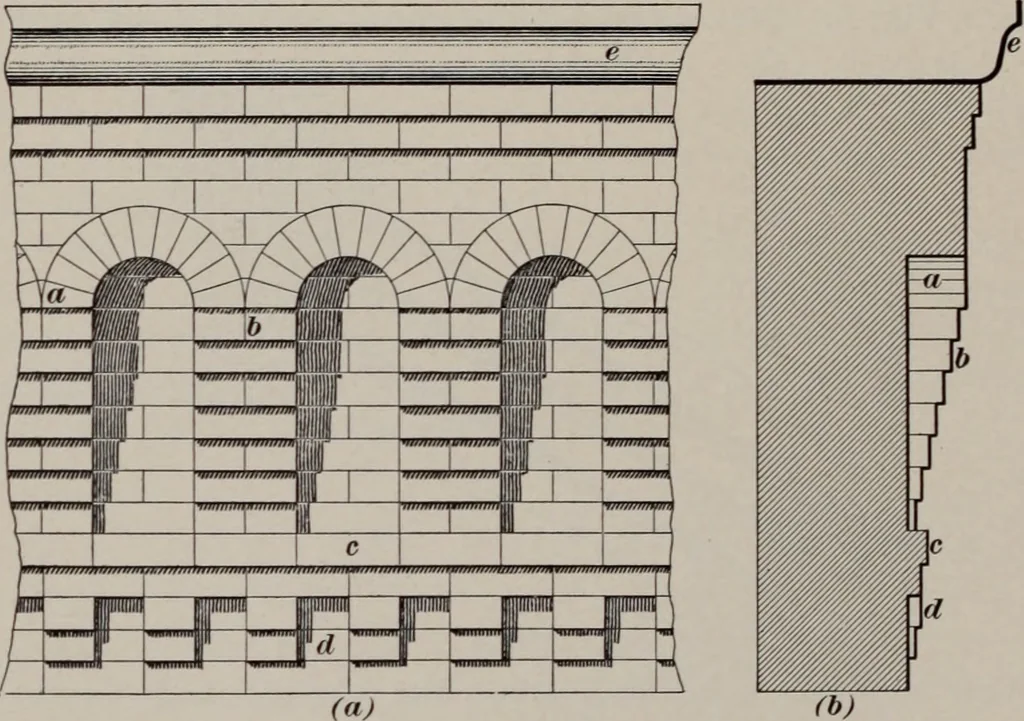

in elevation at (a) and in section dX{b). At a are shown the4-inch arches, which are made of bricks laid the 4-inch wayand sprung between the corbels. For very special work, 8 ORNAMENTAL BRICKWORK 41 these bricks should be gauged, or rubbed, so that they willfit exactly in the arch. At b are shown… … Fig. 9 on which the corbels stop, the upper course projecting \ inch;flf is a dentil course of bricks laid as headers, with a 4-inchspace between each dentil, which is two courses in height,each course projecting i inch; and e shows a galvanized-ironcrown mold that can be used to form a gutter if…
