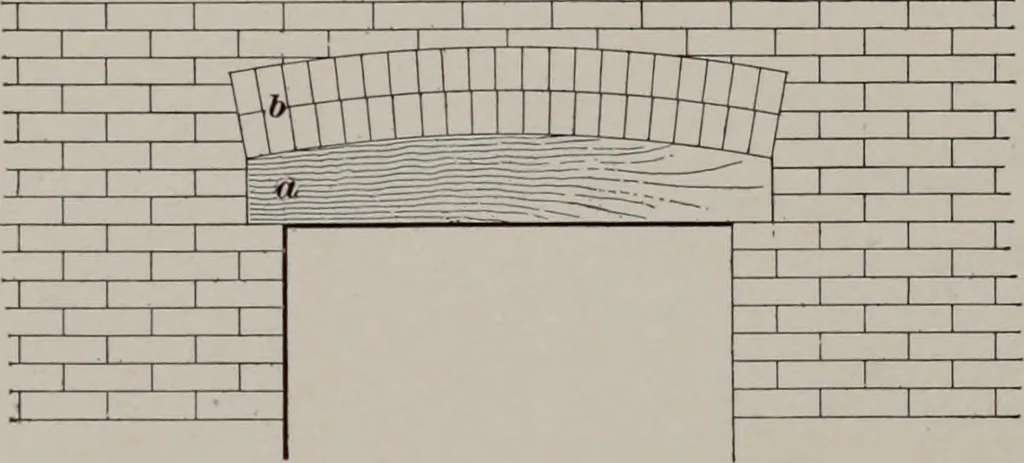

arch, and mayalso be used as a support for the floor joists. The lintel mayhave a bearing of from 4 to 6 inches at each window jamb. 22 ORNAMENTAL BRICKWORK §41 28. Relieving Arehes.—Instead of cambering, orcurving, the under side of a flat brick arch placed overan opening, the soffit is often made… … Fig. 23 X i iron angle, as shown at a; (/?) shows a section throughthe arch, a being the iron angle; c, the 4-inch brick arch; andd, the wooden lintel behind the arch. 29. Sometimes, when the construction will admit, thewooden lintel may be cut on a segmental curve, as shown inFig. 23. In this…
