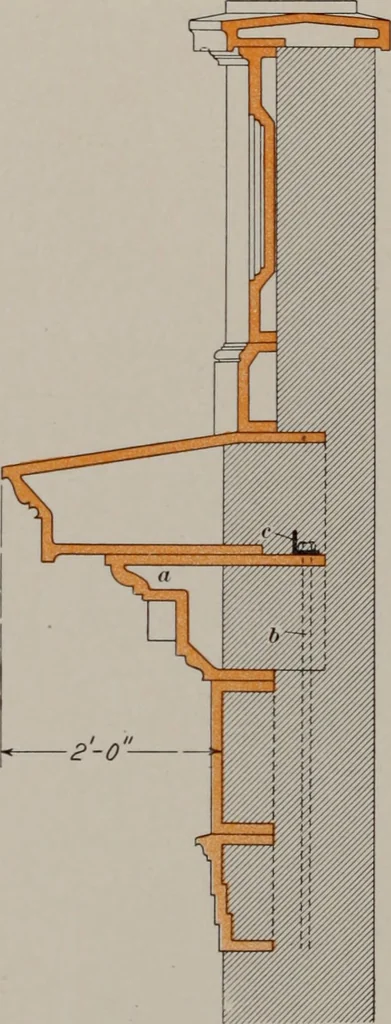

Fig. 32 36 ORNAMENTAL BRICKWORK 41 molded, as, in manufacturing them, holes or slots must bemade for inserting the beams, rods, and anchors. 55. The method of placing and anchoring terra-cottacornices is shown in Figs. 33 and 34. In Fig. 33 is repre- … FlG. 33 sented a cornice having a projection of 2 feet. At a isshown the bracket extending into the wall, and held in placeby an iron rod b bolted to the angle c, which runs longitudi-nally through the wall; the rod /; has an anchor plate at itslower end.
