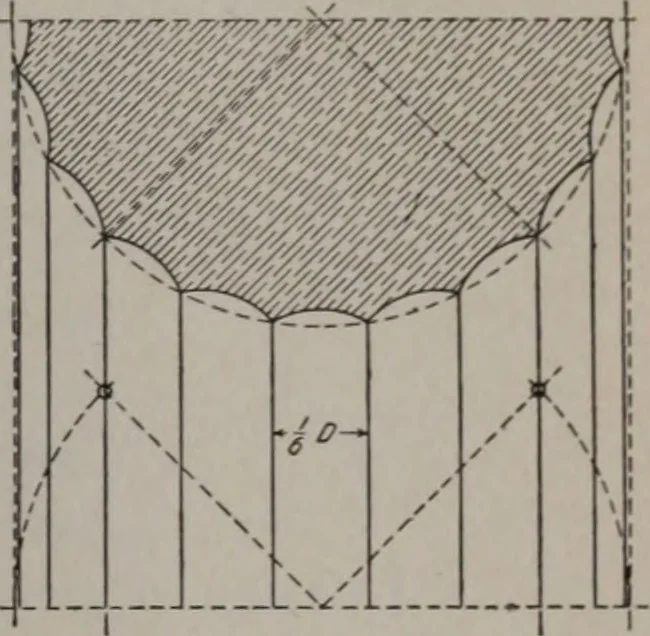

lled thearris, makes an angle of something over 90° (102°). Theten arrises shown in elevationare easy to draw, as two comeon the outlinf; of the shaft, twocome on its corners, and thetwo middle ones are almostexactly one-sixth of a diameterapart. The channels are .157of a diameter wide, so… … Fig. 28 58. The Doric base and capital. Figs. 25 and 26, aredivided, like the Tuscan, into halves and thirds, but withadditional moldings, a bead being added above the torus ofthe base and another below the echinus of the capital. Theabacus is crowned by a cymatium consisting of a fillet andcyma…
