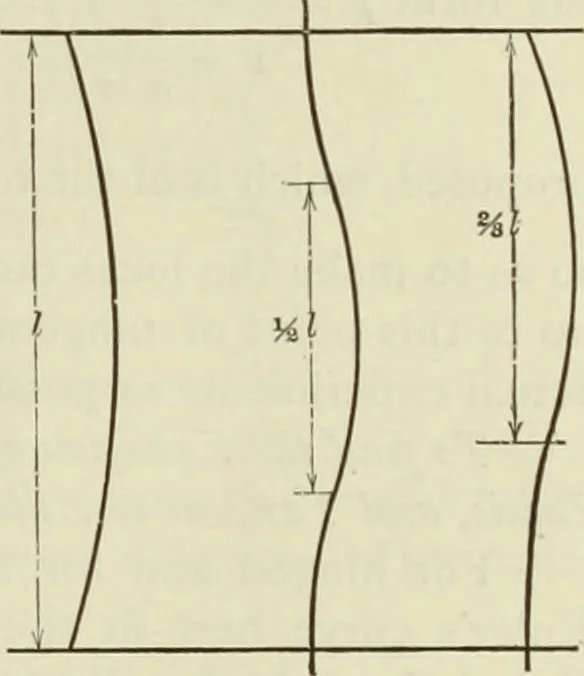

tween the two points ofinflection acts as a whole column on knife-edges, but the length/ of this portion is only —. When one ead is fixed and the other free to turn, the portion analogous to Fig. 204 is |/, as shown inFig. 206. Therefore, when a formula has been derived for the / first case it can… … Fig. 204. Fig. 205. Fig. 206 Name of Formula. For Pivoted Ends. For Fixed Ends. For one end Pivoted andone end Fixed. 148 MODERN FRAMED STRUCTURES. Unfortunately neither of these end conditions is ever found in practice. The nearestapproach to a pivoted end is the ordinary pin connection, but the…
