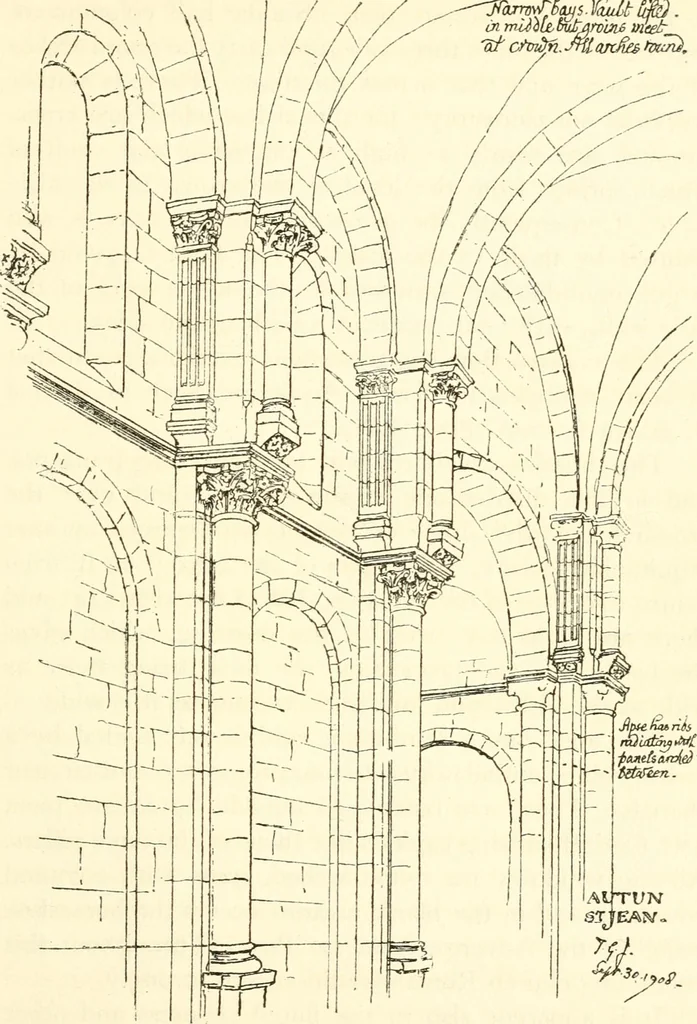

eted outfrom the wall pier (Fig. 98), which consequently projectsconsiderably into the church, and helps the abutment.There are no diagonal ribs, and the bay being muchshorter from E. to W. than from N. to S. the cross vaulthas to ramp up like those at Vezelay. The apse is vaultedwith radiating… … Fig. 98. J. A. II. 114 FRANCE—BURGUNDY [ch. xxii Valencecathedral Viennecathedral transverse ribs springing from semi-circular shafts attachedto the front of a square pier. Similar half columns areattached to the other three sides and carry the round archesof the nave and that across the aisle.…
