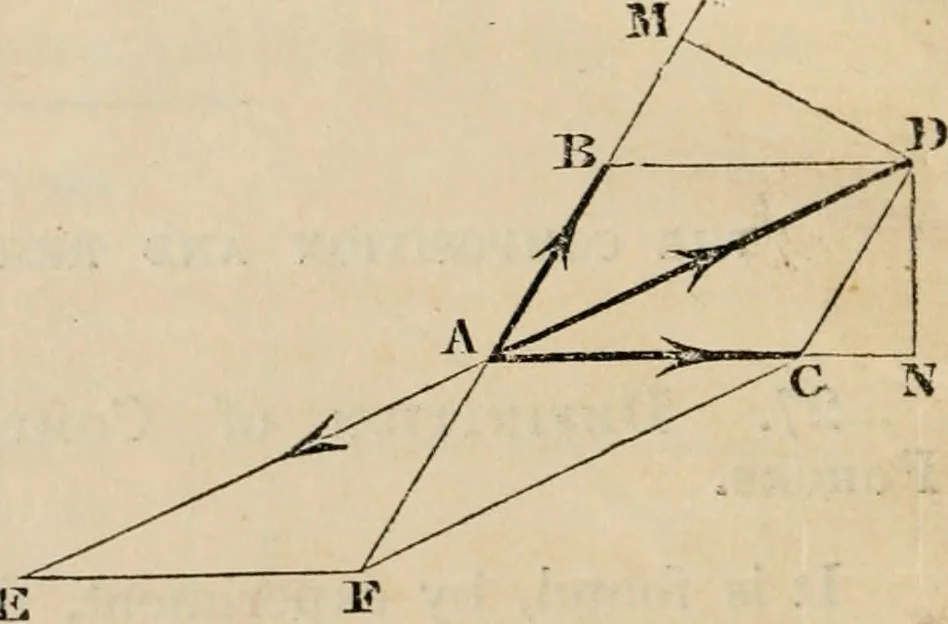

] and magnitude, the diagonal will representthe resultant force (l) in direction pine of action],and (2) in magnitude. Let AB and AC re-present, in direction and magnitude, the two com-ponent forces that act atA. Complete the paral-lelogram BC, and drawthe diagonal AD. ThenAD will represent… … MECHANICS. 27 and angle DBM = angle BAC (since BD, AC are paralleland MBA cuts them), = angle DCN; /. the third angle, BDM, of the one triangle = the thirdangle, CDN, of the other; and the triangles are equiangularand similar. .-. CD : DN :: BD : DM, and .-., alternately, CD : BD :: DN : DM. Now if…
