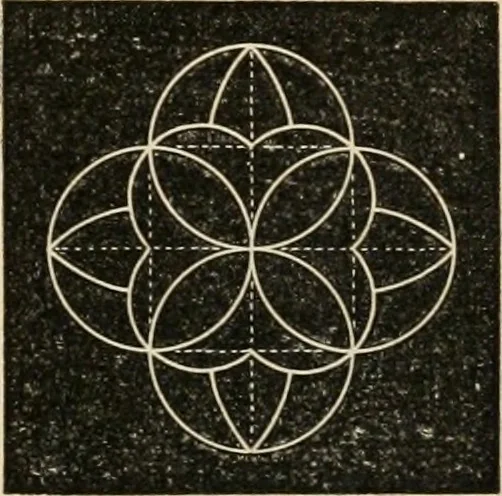

are. Extend thediameters one-half of their lengthbeyond each side of the square.On each side of the square draw asemicircle passing through the endof the e.xtended diameter. Thiswill complete the copy in the draw-ing-book. Now make of each semicircle a complete circle.Then through each corner of… … 118 TEACHERS MANUAL. DRAWING-BOOK EXERCISE XXI.Quatrefoil, Filled. Directions. — Mark the oeiitre of the spare allotted in thedrawing-book. Through thi.s pointdraw two .straight lines, one verti-cal, one horizontal, eath twoinches long, and each bisecting theother. On these liue.s, a.s diame-ters,…
