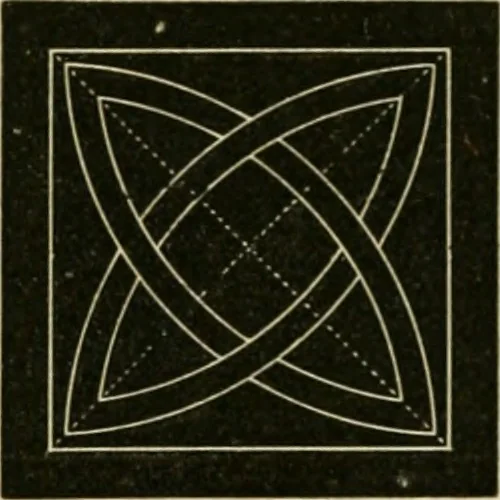

centre of the largest space on thepaj?e l)y a point; thr(>u<;li tliis drawthe horizontal and vertical diame-ters for a tive-inch sqnare. Drawthe sqnare, and add its diagonals.Divide the diagonals into thirds.Tlnongh tlie points of divisiondraw eqnal circnlar curves, one oneach side of each… … The Unit of the Dog-Tooth Moulding. Directions. — Tn the upper right-hand space draw a two-and-a-half-inch sqnare, with sitdiameters and diagonals. Ad<l theindentations at the centres of thesides. Line in. By repeating thisunit, leaving a slight space be-tween the repeats, and adding par-allel…
