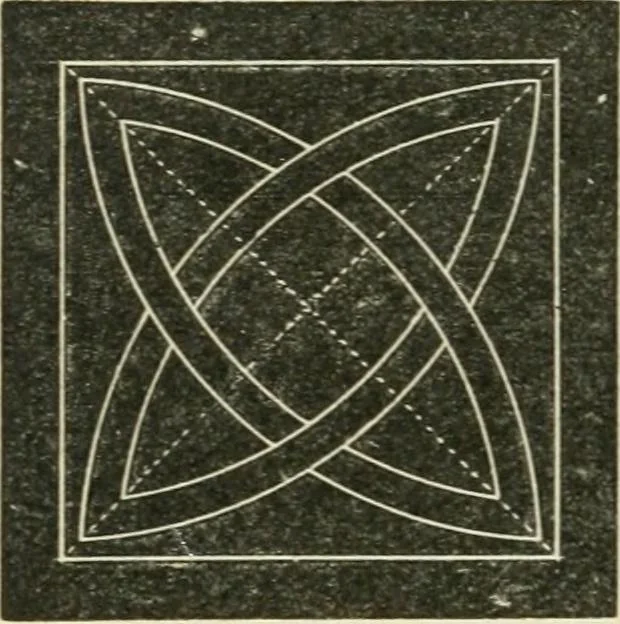

ns. — Mark the centre of the largest space on thepar:;e hy a point ; through this drawthe horizontal and vertical diame-ters for a five-inch sqnare. Drawthe square, and add its diagonals.Divide the diagonals into thirds.Through the points of divisiondraw equal circular curves, one oneach side of… … The Unit of the Dog-Tooth Moulding. Directions. Tn the upper right-hand space draw a two-and-a-half-inch square, with sitdiameters and diagonals. Add theinilentations at the centres of thesides. Line in. By repeating thisunit, leaving a slight space he-tween the repeats, and adding par-allel…
Drawing
