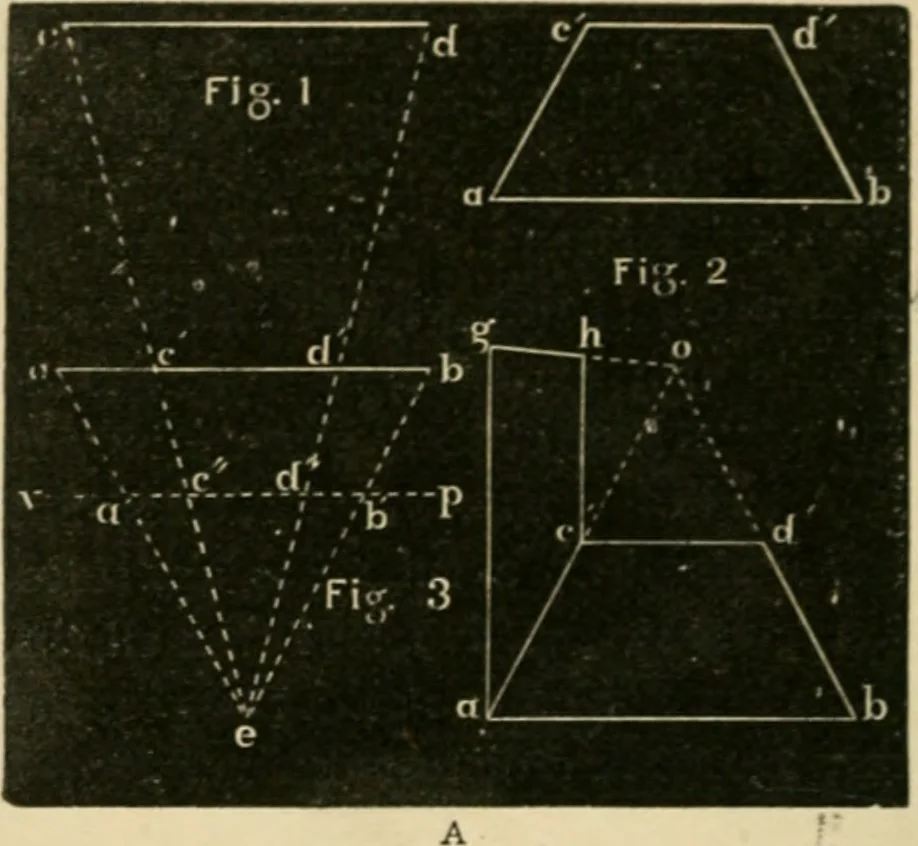

sees, willusually draw the two parts of the same size. Theapparent size of an object (and it is the apparent sizewith which we must deal in Model and Object Draw-ing) depends upon the angle of vision. SupjDOse twoequal straight lines, placed as ah and cd in Fig. 1,cut A, Avith the eye at e. The… … by the converging dotted lines. You perceive that the angle ofA ision aeb isconsijlorabl}-Iiirncr thanthe angle of\ision ced,nnd tliat theapparentlingth of erf,as comparedwith a6, isonly eqnal toc/,or a1)outone-half of the apparent length of ah. This apparent differ-ence in the length of the two…
