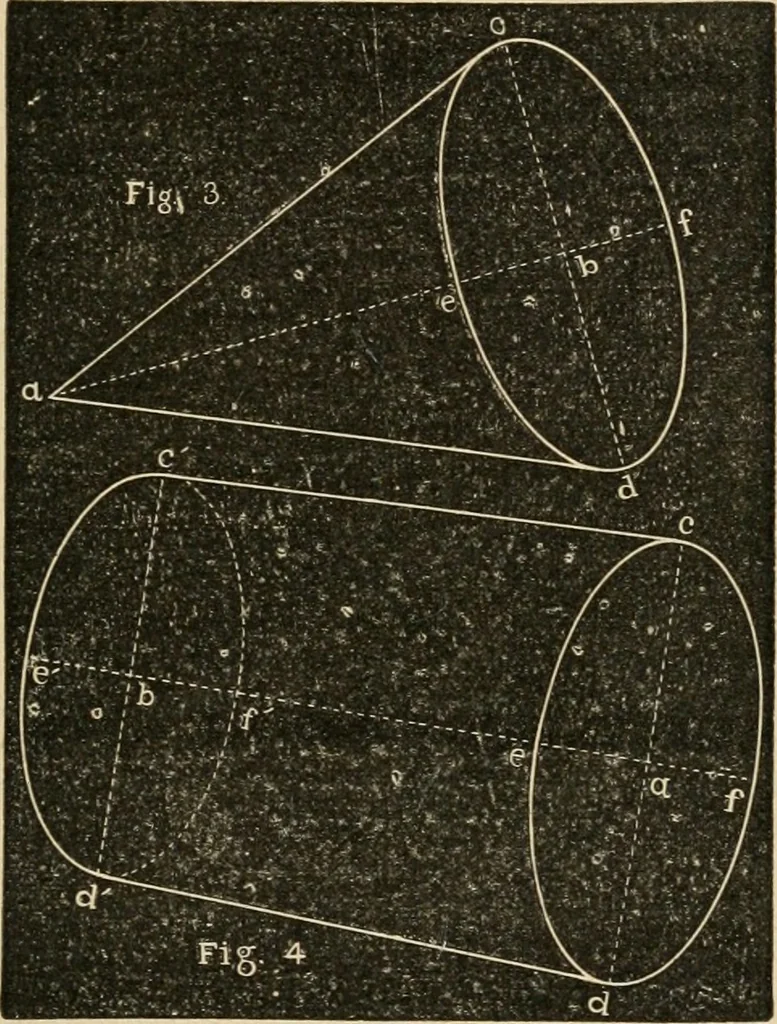

from t/ie level of the eye. Draw (1) the axis of tbe cylinder; (2) draw the long diame-ters of the ellipses perpendicular to the ends of the axis; (.H)determine the breadth of the ellipses: (4) draw the ellip.ses;(.1) draw tbe sides tamjcnt to the ellipses. In this case, theellipses are the same as… … Cone and Cylinder Lying on their Sides : Figs. 3, 4. Here we have the same solids to be drawn thatwere drawn in tlic last exercise. They occup_\- dif-ferent positions, however. Directions for a Cone lying on its Side. — Fi^. 3. Tliecone is supposed to be lying upon a horizontal plane, as afloor:…
