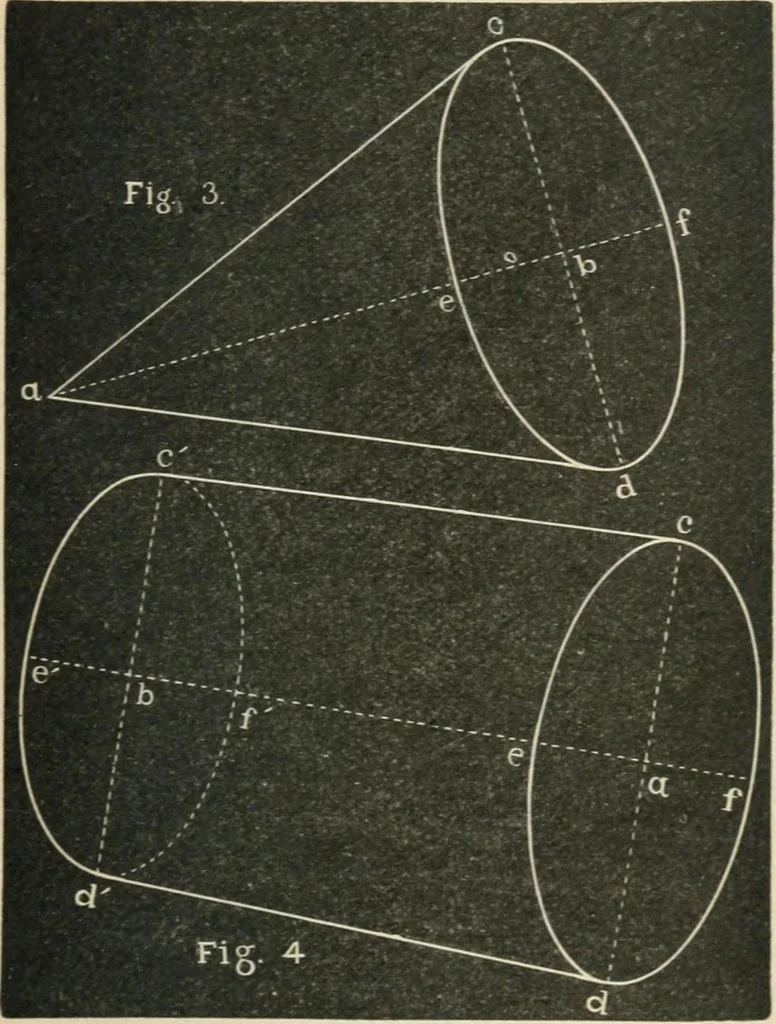

de from the level of the eye. Draw (1) the axis of the cylinder; (2) draw the long diame-ters of the ellipses perpendicular to the ends of the axis; (3)determine the breadth of the ellipses; (4) draw the ellipses;(5) draw the sides tanr/ent to the ellipses. In this case, theellipses are the same as… … Cone and Cylinder Lying on their Sides : Figs. 3, 4. Here we have tlie same solids to be drawn thatwere drawn in the last exercise. They occupy dif-ferent positions, however. DiRECTIOXS FOR A COXE LVLNC. ON ITS SlDE. — Fig. 3. Tlie cone is supposed to be lying upon a horizontal plane, as afloor:…
Drawing
