Teachers' manual for freehand drawing in Intermediate schools : intended to accompany the drawing-books for intermediate schools (1878)
Smith, Walter, 1836-1886 · Toronto, A. Miller · leaf 286

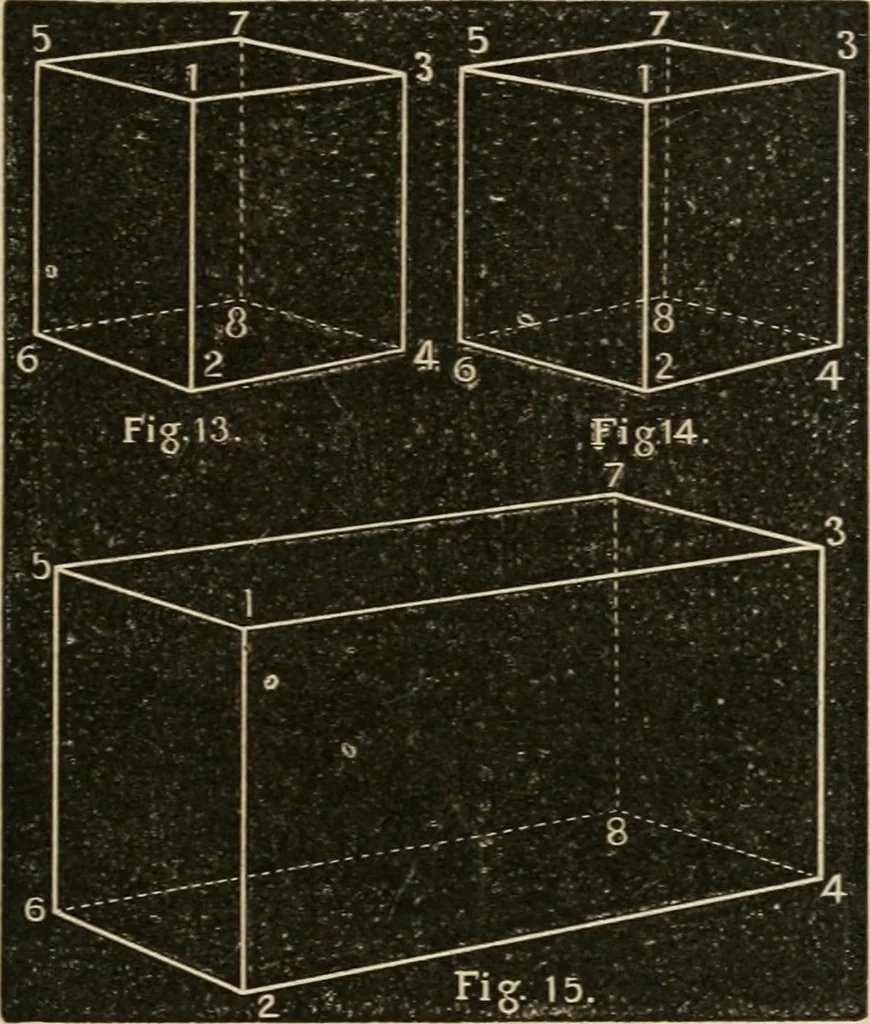

ppears above the epg-cnp, Avhile the rest is indicateil by a dotted line in the cup.Draw the central vertical line, and then the horizontal lines,following; the order of the numerals. Notice that the ovoidform is symmetrical oidy on its long a.\is. The top and bottomof the cup must, of course, be… … Cubes and Parallelopipedon : Figs. 13, 14, 15. Directions Foit Figs. 13, 14. and 15.—The same direc-tions will serve for drawing each of these figures. The solidsare all supposed to rest upon a horizontal surface, and to bebelow the level of the eye. All lines which are vertical inthe solids are to…
Drawing
Internet Archive · University of Toronto Libraries · Public Domain Mark 1.0. Free to use for anything.
