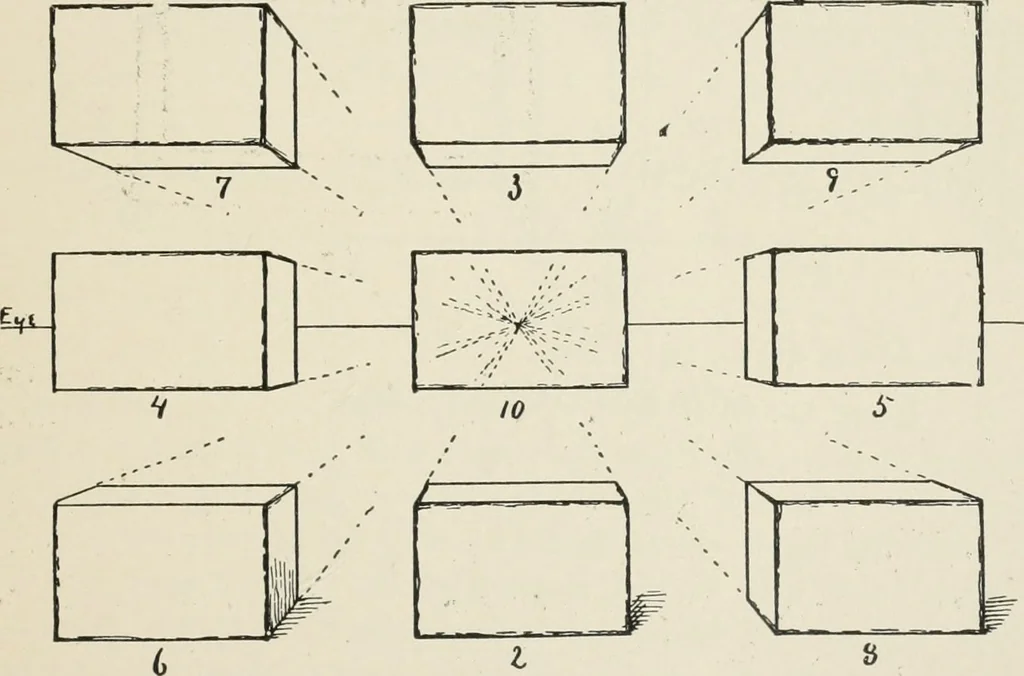

enter of Vision is an imaginary point directly opposHethe eye. All horizontal receding lines converge to tJiis point. E L (eye level) in Fig. 1 is the Horizon Line. The horizouline in drawing is the line that marks the level of the eye. It is thelevel-of-the-eye line. The center of vision being the… … i-tvfL Using the vertical, horizontal, and horizontal receding lines,the box may be drawn in nine positions, viz. :Below the eye. Fig. 2.Above the eye, Fig. 3. S4 AUGSBURGS DRAWING. At the left of the eye, Fig. 4. At the right of the eye, Fig. 5. Below and at the left of the eye, Fig. 6. Above and…
