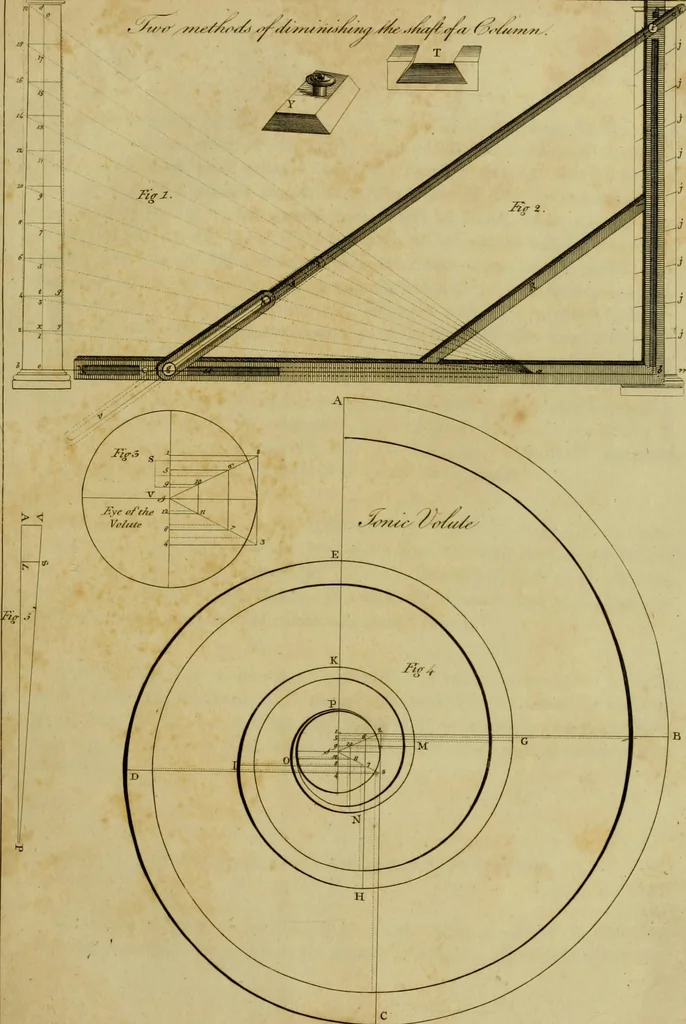

An illustration from The cabinet-maker and upholsterer's drawing-book : in four parts, 1802, leaf 150 — twenty-four is the number of tlutes allowed, and their fillets are one third ofthe width. The depth of the flutes is determined by a femicircle whofe di-ameter is equal to the width of them. How to defcrlbe the Ionic Volute.See Plate XIII. Fig. 4. Operation.—Draw the perpendicular A /, and make A s… … TttA^ra/rn ticUn Pul^^hedOf c/ieAct directr hy (r.Terry^^^^eh^S- 3^^2 ^.Bar^t^Jculf* . ( 113 ) equal to the radius of the circle, as 1, 2, 3, 4. From the angles 2, 3, draw aright line to the center of the circle, as at s. Divide the fide of the fquare1.4 into fix equal parts, as at 5, 9, 12, 8.…
