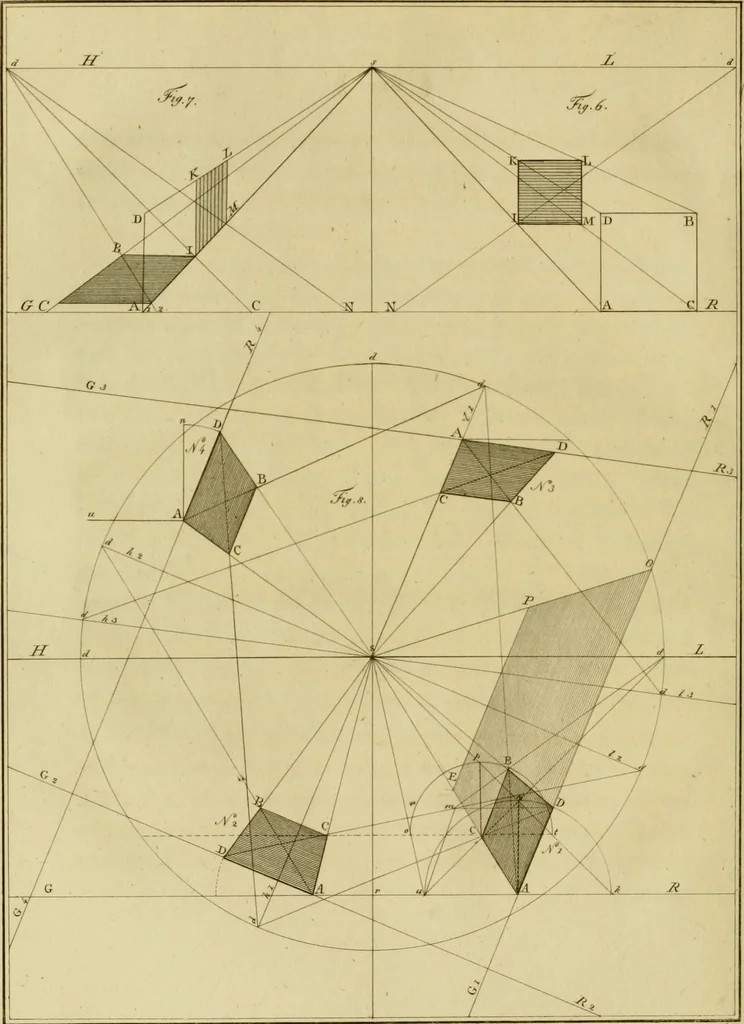

hing requifite to thereprefenting or meafuring of a bare line. Therefore, in findingthe reprefentation of a geometrical fquare, for inftance, theproblem for this will teach us both how to find the points of itsangles, and at the fame time how to reprefent and meafure aline equal to the fides of the… … r.Sheraeon Z>f/ Fui/i/iied ur r/if Arc directs- /r G T^rry J/rii ^. z-^« ./.Bijr/rffS-*i//>- ( 227 ) Prob. I. Fig. 7. Plate XV. To reprefent a Geometrical Square lying on the Ground^ havingtzvo of its Sides parallel to the Figure, and the other two per-pendicular to it. Operation.—Draw the…
