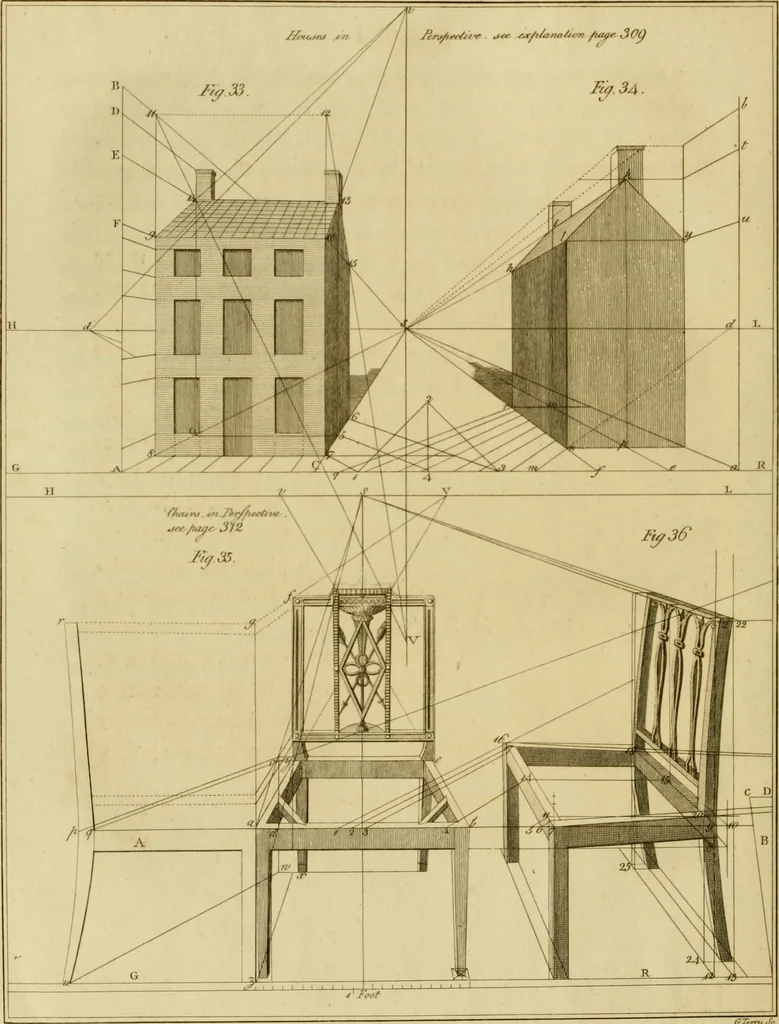

; then from c to 15 and to 14 draw diagonalsagreeing with the other, and cut thefe as before, by a line from16, by which the other fide of the arch will be reprefented;that is, as much of it as ought to appear. The part which doesnot appear is denoted by the dotted curve. In the fame mannerproceed… … uSfift^iz^i i*^/ 7h/-/tif/iW /if OTernf_ Aupf i. tj()2 OJim^iff ( 309 ) Example VI. Fig. 33. Plate XXIV. Hoiv to reprefent a Houfe in Ferfpe&ive^ having its Front parallel to the Piflure. Let H L be the horizon, and G R the ground line, s is thecenter, and sdihQ diftance of the picture. Make AC…
