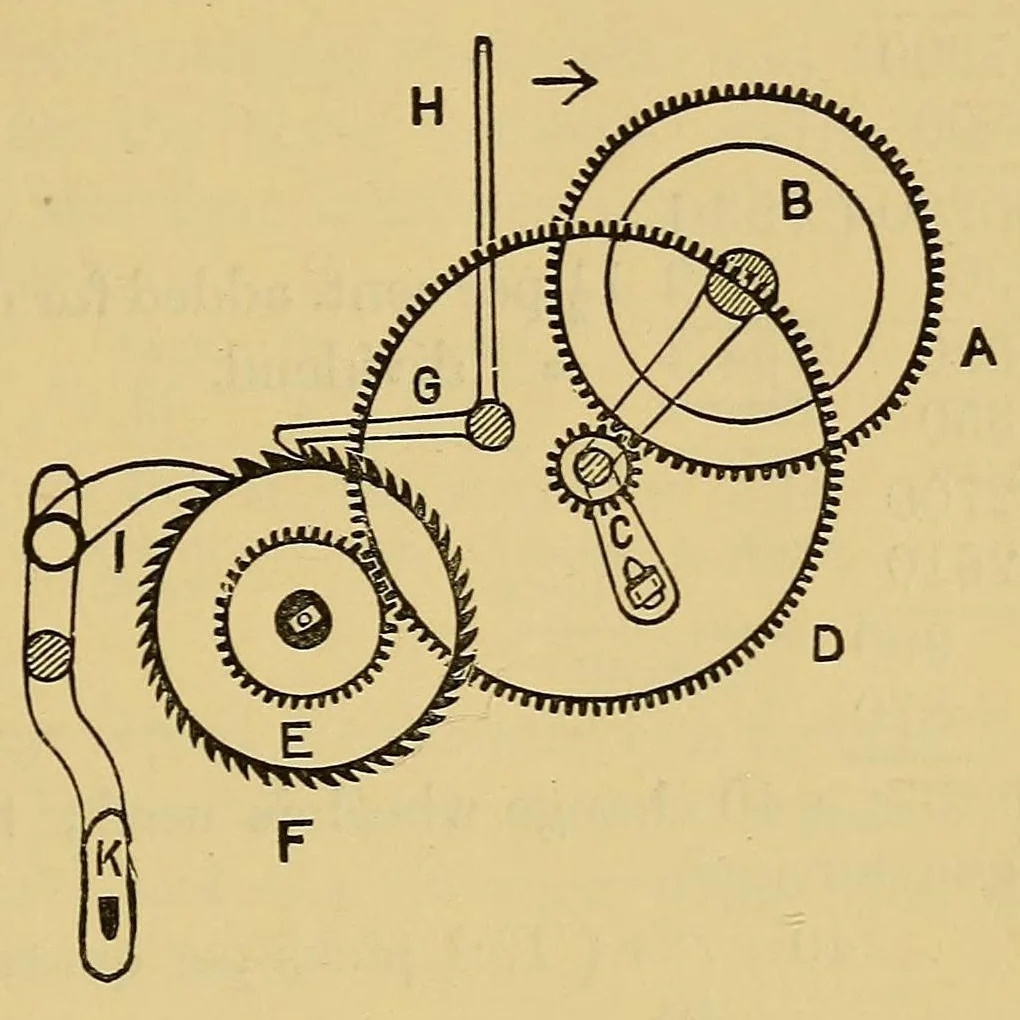

87 LOOM CALCULATIONS. The lever J is worked by means of a short stud K fixed to the slay sword, the pawl I attached to the lever pushes forward the wheel F one tooth each pick. Fig. 3. … the pawl G prevents the wheel slipping back ; the short lever H is pulled back so as to lift the pawl G, when the weft breaks to stop taking up. E equals change wheeL Rack wheel, "I Stud ,, Vmultiplied together. Beam „ J equals Small pinion, ^ Circumference of beam in quarter I multiplied inches, f…
