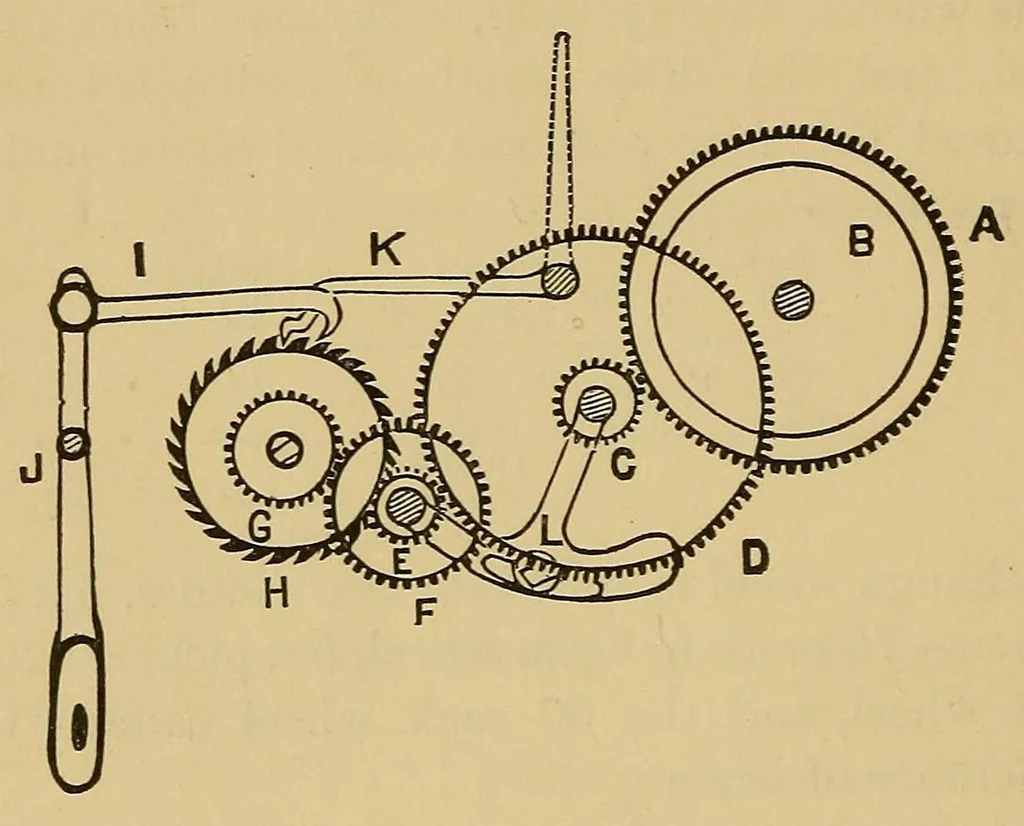

40 LOOM CALCULATIONS. The lever J is worked from the slay sword, the pawl I pulls forward the rack wheel one tooth each pick, the pawl K prevents the wheel slipping back. F — Change wheel. Fig. 4. … If any factor is missing divide by that group to which it belongs. Dividend required. Therefore 60-2 xl5 x24 x36 , ^^ ,. . , , _ = 4 06 dividend. 89x90x24 If it were possible to use a wheel of 4 '06 teeth, it would give one pick per quarter inch in the loom but, more than one pick per quarter out…
