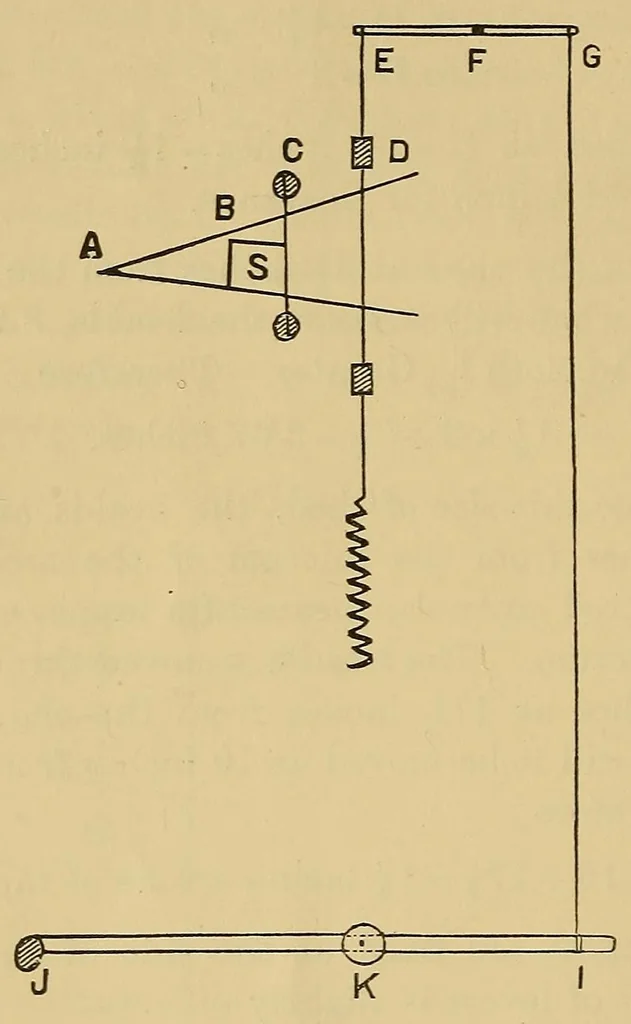

56 LOOM CALCULATIONS. In fig. 1 1, A— Fell of cloth. B— Point in front of the shuttle. C — Reed when at its furthest extremity from Fig. 11. … the fell of the cloth. D— Healds. E, F, G— Top lever. J, K, I— Treadle. K— Treadle bowl. A to B = 3 1 inches. A to C= 5 AtoD- 9 E to F= 5J E to G = 61 J to I =32^ J to K = 22 The size of the shed at B, 3^ inches from the fell of
