Mechanics and heat; a text book for collleges and technical schools (1916)
Franklin, William S. (William Suddards), 1863-1930, Macnutt, Barry, 1878-1936, [from old catalog] joint author · New York, The Macmillan company; London, Macmillan & co., ltd. · leaf 66

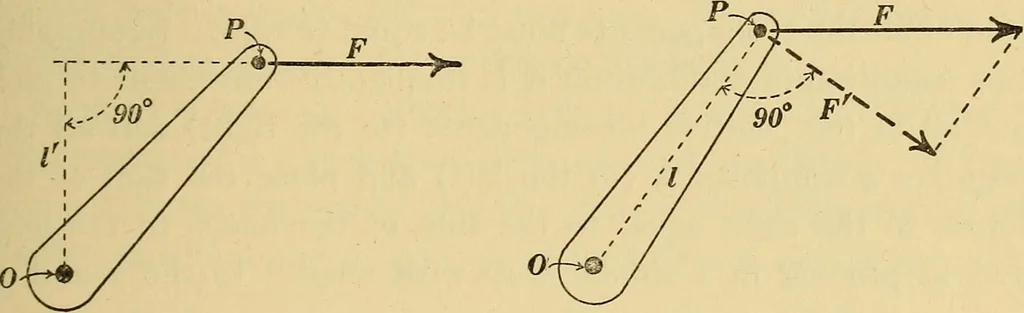

tion and the ten-dency of a force to produce rotatory motion constitute two dis-tinct types of force action as explained in Art. 29. The tendency of a force to produce translatory motion dependsonly upon the direction and magnitude of the force.* The tendency of a force to produce rotatory motion… … Fig. 13a. Fig. 136. axis to the line of action of the force. Thus the torque actionof the force F about the axis 0 in Fig. 13a is equal to the productFV. The torque action of the force F about the point 0 in Fig.13 a. is also equal to the product Fl as shown in Fig. 13&. *This statement appears…
