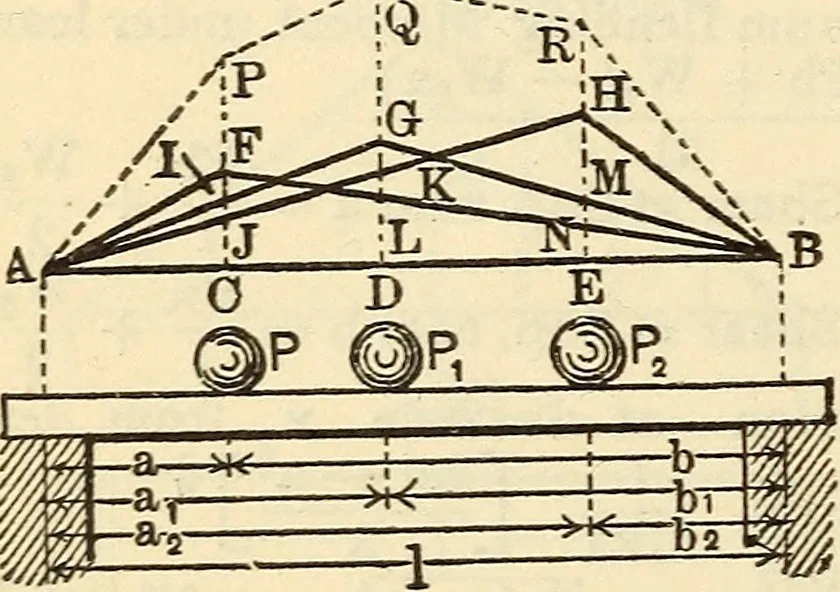

uperimposed load only, make W2 in formulae equal to zero. M = Total Bending Moment, in inch-lbs. M^l, Mp = Bending Moments, in inch-lbs.,due to Weights Wj and P respectively. I = Moment of Inertia, in inches*. 1 = Length of Span, in inches. E = Modulus of Elasticity, in lbs., persquare inch = 29… … The total bending moment at anypoint produced by all the weights isequal to the sum of the moments atthat point produced by each of theweights separately. Diagram for Dead Load similar toCase (1) The Maximum Bending Moment occursat the point where the vertical shearequals zero and will be at one of…
