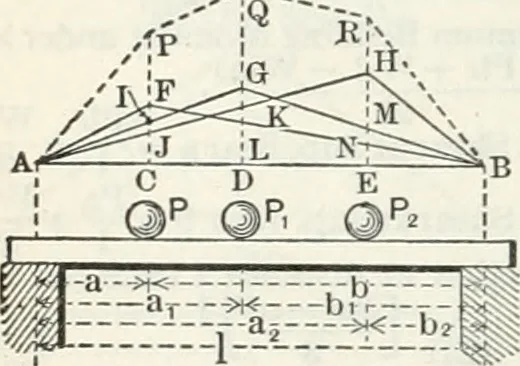

ghts Wi and P respectively. I = Moment of Inertia, in inches4. 1 = Length of Span, in inches. E = Modulus of Elasticity, in lbs., persquare inch = 29 000 000 for steel. Ws = Total Safe Load, in lbs., uni-formly distributed, including the weightof beam = Total Safe Load of Tables. The ordinates in… … The total bending moment at anypoint produced by all the weights isequal to the sum of the moments atthat point produced by each of theweights separately. Diagram for Dead Load similar toCase (1). The Maximum Bending Moment occurs-at the point where the vertical shearequals zero and will be at one…
