Cambria steel; a handbook of information relating to structural steel manufactured by the Cambria steel company, containing useful tables, rules, data, and formulÆ for the use of engineers, architects, builders and mechanics; (1919)
Cambria Steel Co, Thackray, George E. (George Edward), b. 1856 · Philadelphia · leaf 412

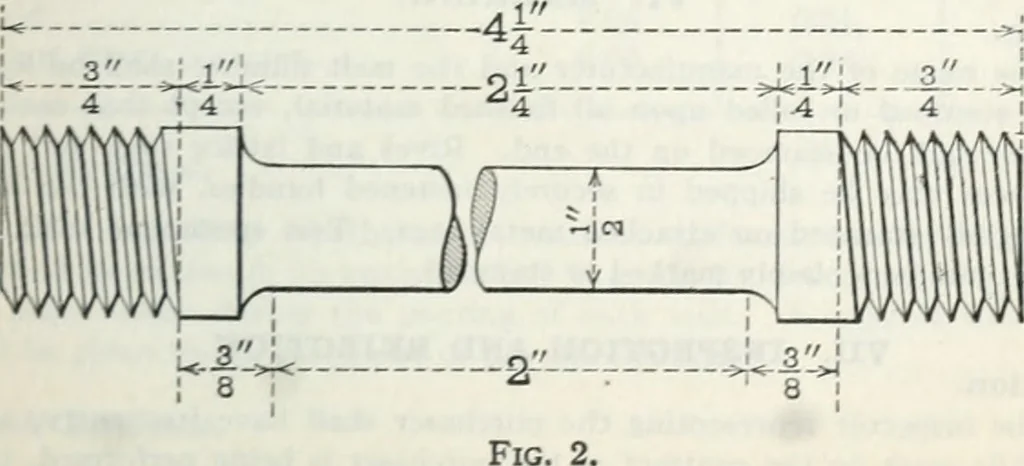

Fig. 1. (c) Tension and bend test specimens for plates and bar3 (except eye-barflats) over 1J^ in. in thickness or diameter may be turned or planed to a diameteror thickness of at least % in. for a length of at least 9 in. (d) Tension and bend test specimens for pins and rollers shall be… … (e) Rivet bars shall be tested in full-size section as rolled. 396 CAMBRIA STEEL. Annealed Specimens. 13. Test specimens for material which is to be annealed or otherwise treatedbefore use shall be cut from properly annealed or similarly treated short lengthsof the full section of the piece. Number…
