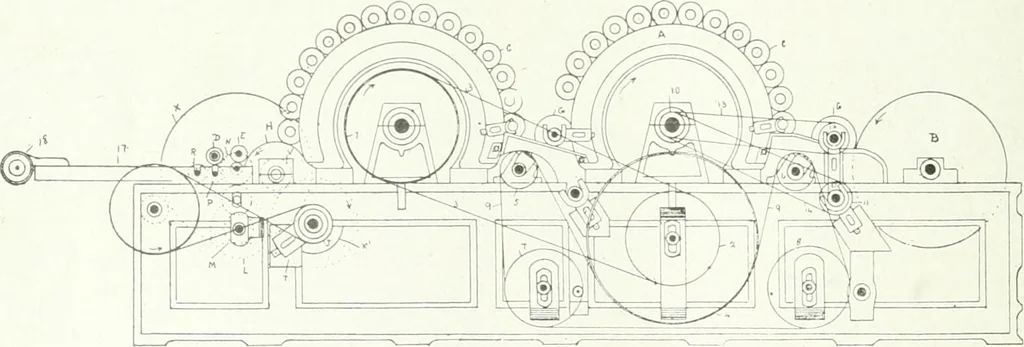

ver thefirst cylinder A are driven from tlie shaft of the divid-ing roller K, or what is sometimes termed the (tum-mer) or second licker-in, while those upon the cylinderA are driven from the shaft of the doffer B. To make itmore clear, the method of driving the dividing rollerK will be described… … It will be observed by examining Fig. 18 that on theend of the shaft of cylinder A is fixed a belt piilley L,which is the pulley that receives the necessary powerrequired to drive the machine from the large pulleyupon the main driving shafts by means of a belt. Thecylinder A is then driven direct,…
