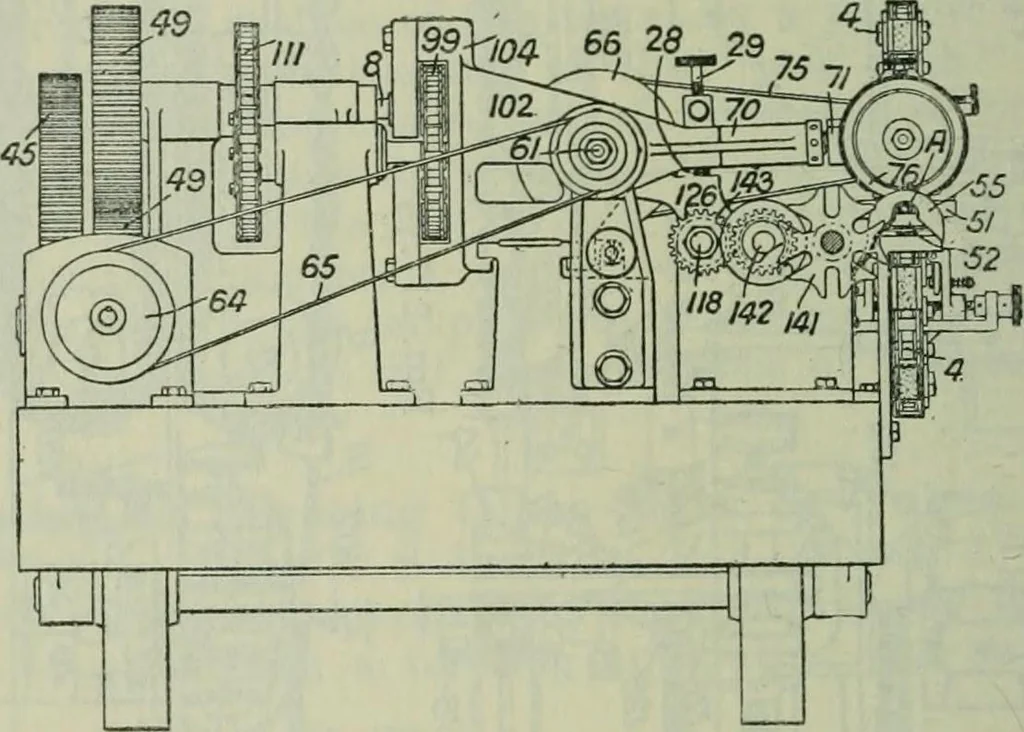

s from the chains through a guide, 54 (Fig. 218), andthence between guide-rollers, 51, similar to tho guide-rolls, 3. It-next passes under the cutter disc and over a spring-supported table,52, and, after being acted upon by the cutter, travels past a guide-member, 55, into one of the pockets of the… … Fig. 219. a slide head, 70 (Fig. 217), so as to permit tensioning of the belt,75. The slide head, 70, is traversed along a shaft, 61, at the samespeed as the work by means of an endless chain, 99, driven throughgearing, 110, 111, 112, from the main motor, 43. A transverse-stub shaft is mounted on…
