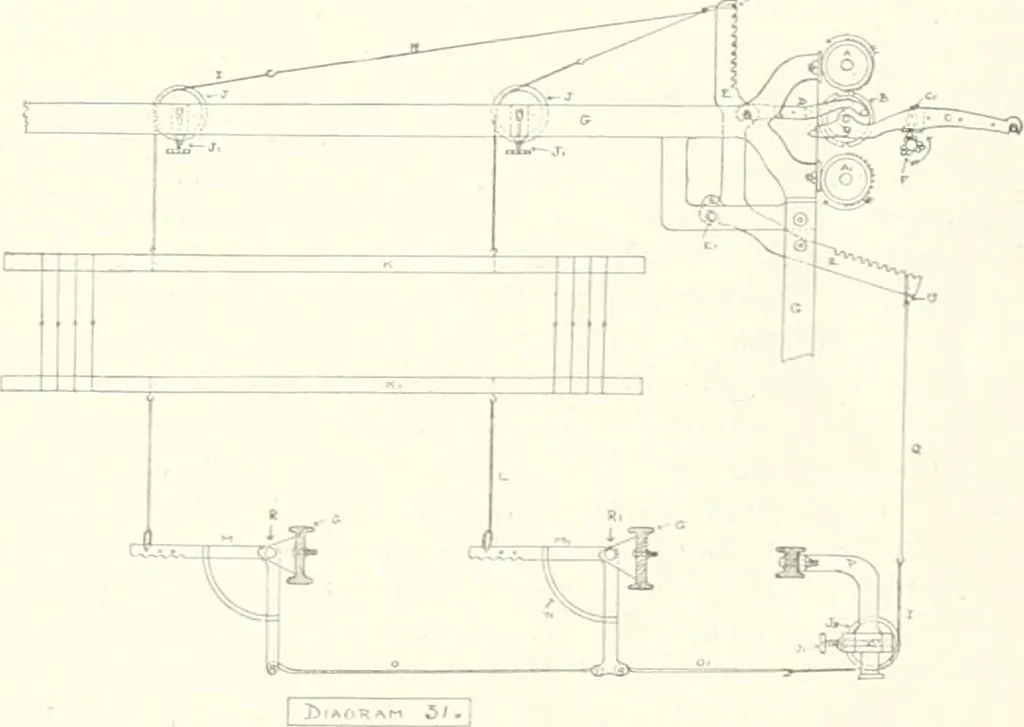

jack E, being drawn to theright by the vibrator lever D, it will draw in thestreamer wiresH, and their leather coiniections I(which run over grooved pidleys J. and are regulatedb.y screws J, aud are connected to hooks on the topshaft K of the healds). The jack E pivoted at Ej allows the bottom… … framework at R, and R). A bell crank lever arrange-ment is formed between the wires and heald cords L,which are joined to bottom shaft K, of healds, therebya complete circle is causeil. which moves on the pivotEl of the heald jacks. In fixing the bottom jacks andstreamer Avires, care should be…
