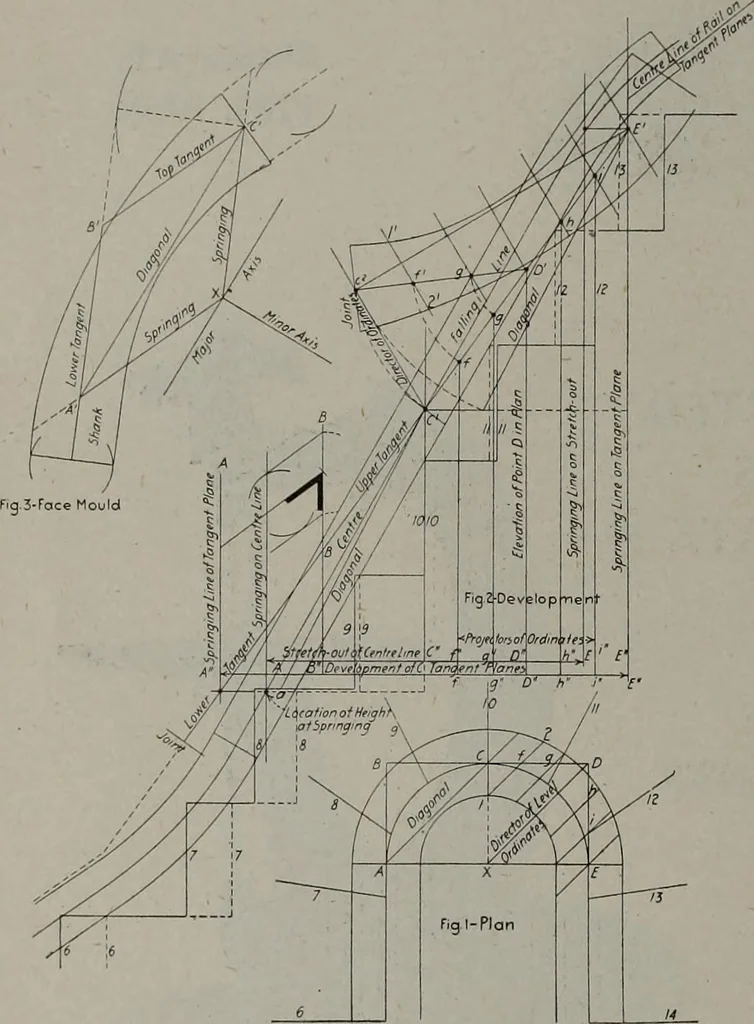

e dots, a b D, and in elevation by the circles, a bd, the heights being obtained from the stretchout ofthe outside rail in elevation. Fig. 2, and are arrangedperpendicularly over their plans. Lines are drawnthrough these points to the ground plane, and a linejoining their intersection with this… … The Evolution of Handrailing—Plate 3—A Half Space ofWinders; Face Moulds by Trammel andOrdinate-Method Compared drawn parallel to a director, found as follows: Takeany point, S, in the line, D-P, and draw a perpendi-cular therefrom, intersecting the base of the obliqueplane in point, n. From point,…
