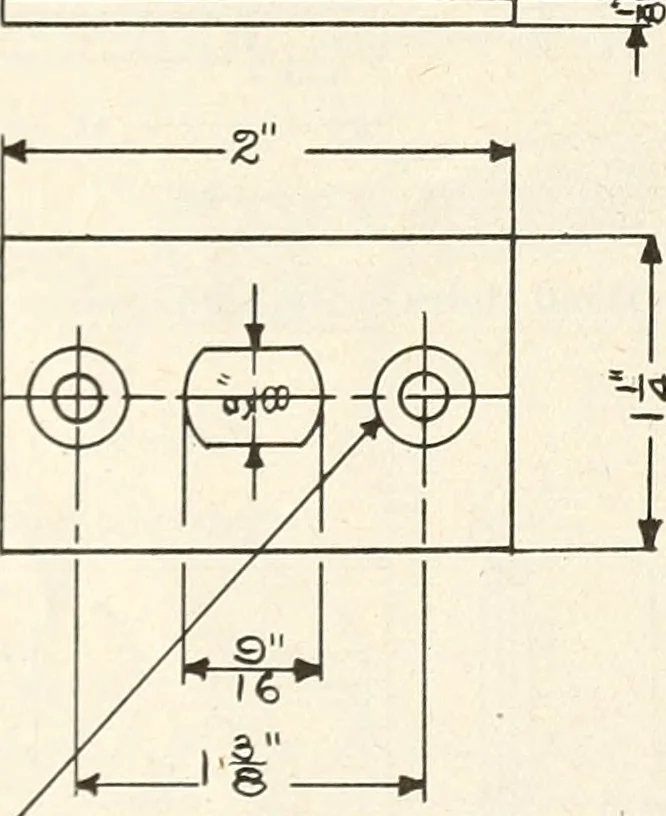

C—CLEARANCE HOLES FOR N<> 10 EH. IRON SCREWS fa LONGGALVANIZED LID PLATE,5TE.EL,GALVANIZED. - Fig. 6 place has a ring and chain attached to it to keep itFrom getting mislaid. The ring has an opening 1 inchin diameter and is made of ring steel No. 13 S.W.G.,.092 of an inch wide. One end of the… … CSK. CLEARANCE HOLES FOR H° LPF.H. IROH SCREWS %L0h6.GALVAMIZLD BOTTOM PLATE,STEEL GALVANIZED Fig. 7 plate by a small staple. The dimensions and shapeof the wing nut are shown in Fig. 1 and the ring andchain in Fig. 8. The size and location of the holes in the lid andbottom plates are shown in…
