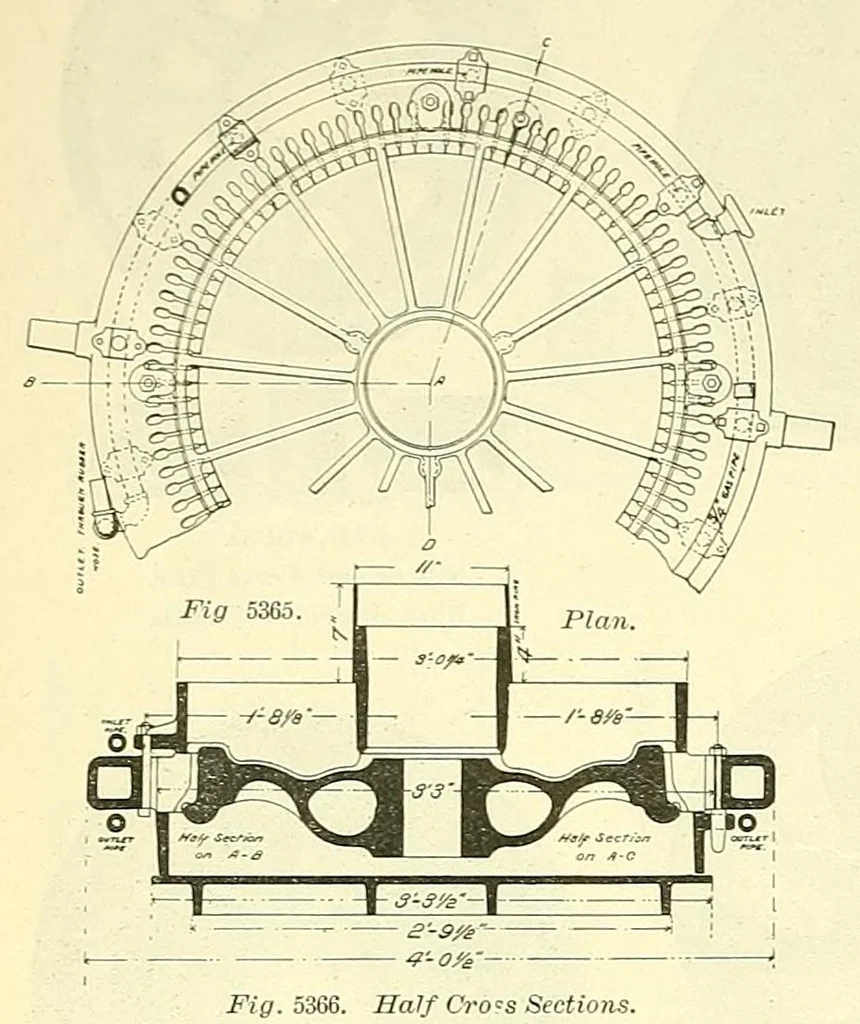

An illustration from Car-builder's dictionary; an illustrated vocabulary of terms which designate American railroad cars, their parts, attachments & details of construction;, 1898, leaf 530 — Figs. 5364-5376. TRUCE. DETAILS, Wheels ; Contracting-chills. Fig. 53U. Elevation. … Fig. 5366. Half Cro'S Sectioyis. Fig. 5367. Plan of Bed Plate. The Barr Contractixg-chill. Fig. 5376. Plan. THE WHITXEY CONTRACTING-CHrLL. Fig. 5370. Perspective View of Segmental Chilling-blocks. Fig. 5363. PZan o/ Chill. 'SECTION THROUCH CD Fig. 5369. Figs. 5371-5373. ZTa?/ Cross Section and Half…
