The carpenter's and joiner's hand-book : containing a complete treatise on framing hip and valley roofs ... (1888)
Holly, H. W. (Henry Wells) · New York : John Wiley & Sons · leaf 43

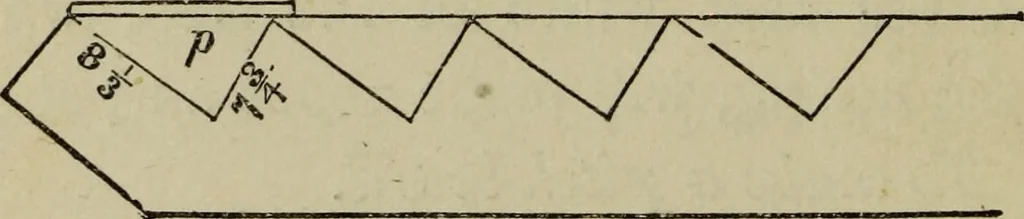

Fig. 29. Take a piece of tliin clear stuff (Fig. 29),and lay the square on tlie face edge, asshown in the figure, and mark out the pitch-board j9 with a sharp knife. 33. To lay out the string, JSTail a piece across the longest edge of thepitch-board, as at 5, so as to hold it up tothe string more… … p Fig. SO. IIAND-BOOK. 39 The bottom riser must scribe down to the. thickness of the step narrower than theOthers. 34. To file the fleam-tooth saw.
Carpentry
