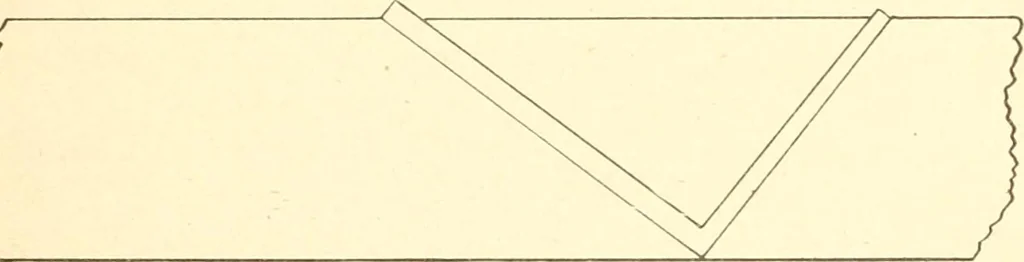

an end of a timber, laid out bythe above scale. This scale is a very useful one, but a more convenient andsimple rule is the following: To lay ofif a square timber tobe made octagonal, place the square on one flat surface of the MANUAL TRAINING 25 timber in the manner shown in Fig. 34, take the… … point marked at seven. From each corner gauge lines oneach surface of the timber parallel with its length and when thecorners of the timber have been worked ofif to the lines drawn,it will be octagonal in section. The diagonal scale is on the tongue of the square at itsjunction with the blade as…
