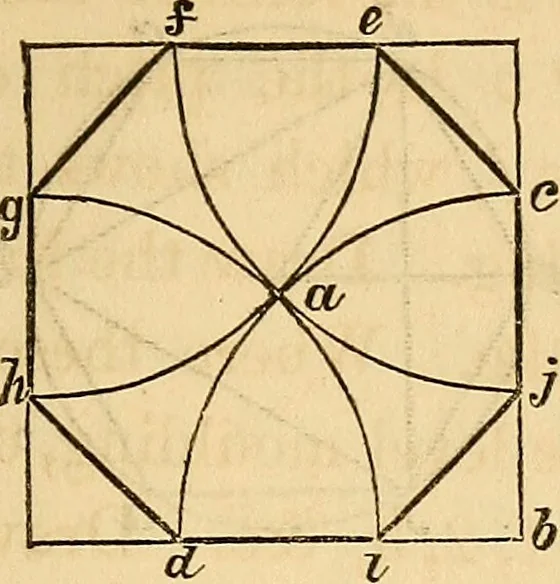

he level moulding, draw the hor-izontal lines 1, 2, 3, &c. Draw the line fsquare from the rake: set the same distancesfrom this line that you find on the levelmoulding 1, 2, 3, &c. Trace the curvethrough these points 1, 2, 3, &c, and youhave the form of the raking moulding. Hold the… … Fig. 21. Let Fig. 21 be the square; find the centre«/ set the compasses from the corner b, toa ; describe the circle cutting the outside lineat c and d; repeat the same at each corner,and draw lines c e, f g, h d, and ij. Theselines will form the octagon desired 25. To draw a hexagon or six-sided…
