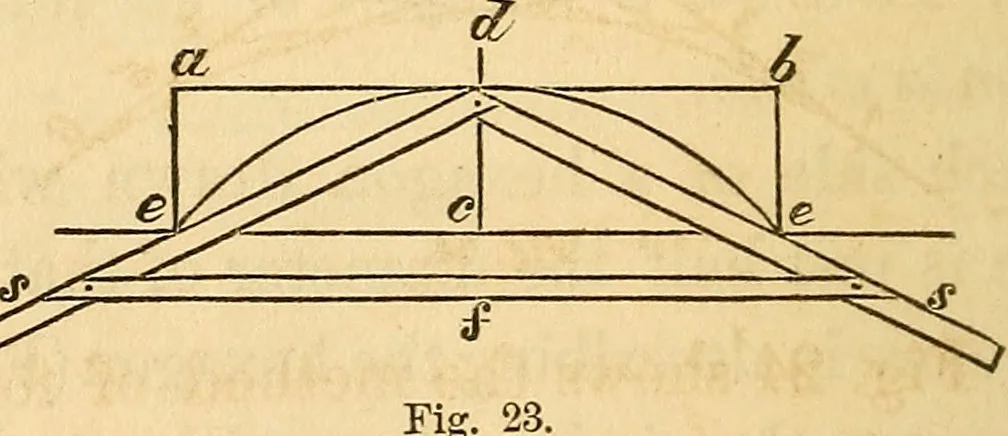

&c, and you have an exact hexagon. Joinb, d, and/, and you have an equilateral tri-angle ; join d, e, and the centre, and youhave another triangle, just one-sixth of thehexagon described. 26. To describe a citrve by a set triangle. … <^ Let a b (Fig. 23) be the length, and c dthe height of the curve desired; drive two HAND-BOOK. 33 pins or awls at e and e / take two strips s s,tack them together at d, bring the edges outto the pins at e; tack on the brace f, tokeep them in place; hold a pencil at thepoint d ; then move the…
