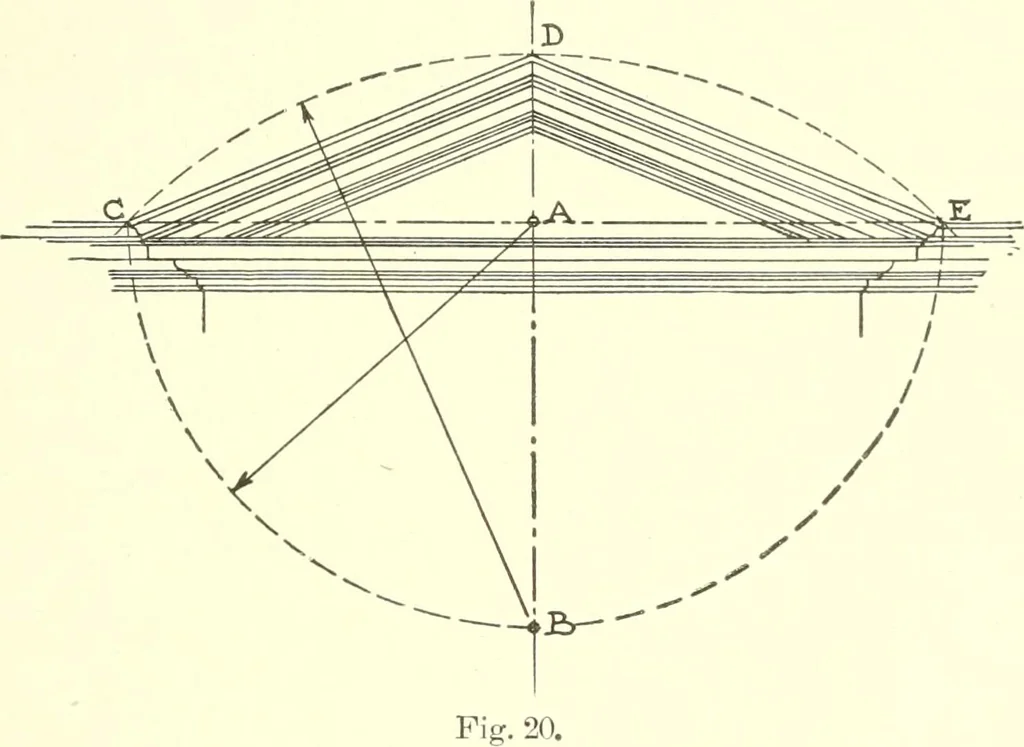

^ARCHED * DOORWAY PLATE XXII.(A reproduction at small size of Portfolio Plate XXII.) THE KOMAN ORDERS 43 semi-circle intersects the axis of the pediment at the point B.With B as a center and with a radins equal to the distance from Bto C (the extreme outside j^oint of the horizontal cornice) draw… … In plate XXXIII is represented a portico of the Ionic Orderwith three intercolumniations which fomis the front of an edificeintended for a hall or temple. The j)laii is a i^arallelogram ofwhich the front or portico occupies one of the smaller sides. SUPERPOSITION OF THE ORDERS. 116. The principles…
