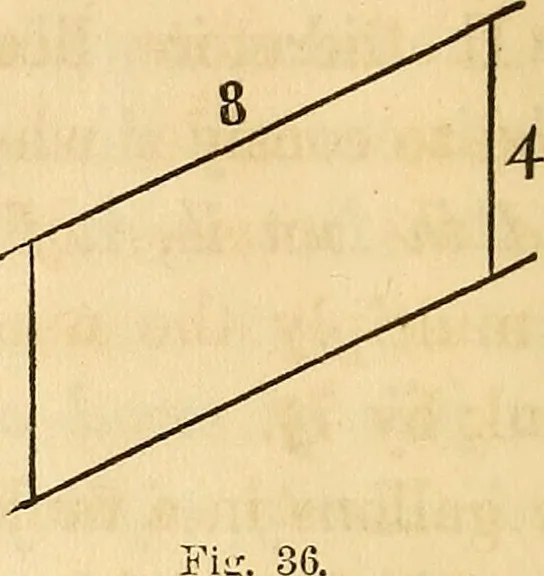

is, a is a file measuring HAND-BOOK. & one inch, on all sides; cnt off h, making afile I inch on the sides, it will readily be seenthat the angle is exactly the same. Simple as this fact is, it is unknown tomany. 38. Does a pile of wood on a side Milpiled perpendicularly, eight feet long,… … Place this frame on a side hill, so as to giveit the position in Fig. 36, it will be seen thatthe 8 ft. sides are brought nearer together,thus lessening its capacity. Continue to in-crease the steepness of the ground, as at Fig.37, or more, the 8 ft. sides would finally
