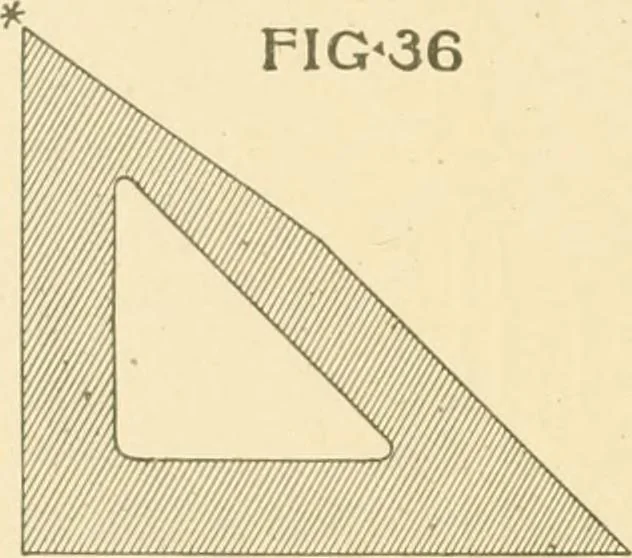

the end ofthe edge C. It is also the beginning of the shadow of the edge Bon the right-hand slope, which shadow is parallel to B. The remaining shadows of the pediment are found in thesame manner, and may be understood, from the diagram, withouta detailed exj)lanation. SHORT METHODS OF… … N ^] F1G^37 \ \ \ \ \ Aay« 2 in architectural drawings. These methods here worked out withregard to the co-ordinate planes apply also to parallel planes. 84. They will be found to be of great assistance in castingthe shadows in architectural drawings. The latter seldom havethe plan and elevation on…
